Product Information

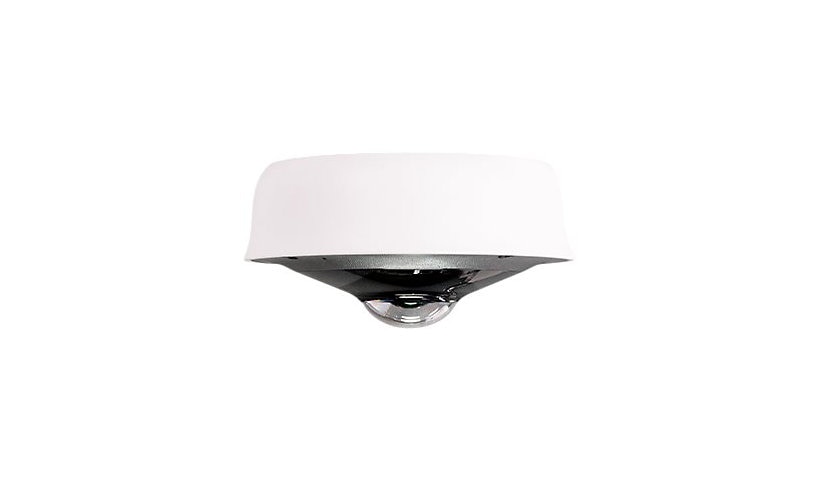

The Cisco Meraki MV93 is a cloud managed outdoor fisheye with a 12.4 MP sensor recording up to 2880 x 2880 (15 fps at full resolution, 24 fps at lower) for a full 360 degree view. It has IR up to 66 ft, three mics, HDR, a heater, Wi-Fi and motion heatmaps, and runs on 12 V DC or PoE. Wall mount kit included.
Key Features
- 12.4 MP fisheye
- 360 degree view
- IR up to 66 ft
- Three mics, Wi-Fi
- HDR, heater
- Wall mount kit included
Product Information
Brand: Cisco Meraki
Manufacturer: Meraki
Product Line: Cisco Meraki
Model: MV93
Packaged Quantity: 1
Color Category: Black, White
Network and Communication
Wi-Fi: Yes
Connectivity Technology: Wired, Wireless
Encryption: 256-bit AES, EAP-TLS, TKIP, WPA, WPA2-Enterprise, WPA2-PSK
IoT Communications Type: Cloud
Internet of Things (IoT) Compatible: Yes
Features: 360° field of view, 802.1x authentication, Heater, High Dynamic Range (HDR), Integrated omnidirectional antennas, LED Indicator, Management encryption, Motion Heatmaps, Motion Recap, Motion Search, Night Vision, Object Detection, Reset button, Role-based user accounts, Secure Boot, Signed firmware, Two-factor authentication, Up to 256 QAM
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Protocols: DSCP
Ports: LAN/power - RJ-45
Memory and Processor
Flash Memory Installed: 256 GB
Technical Information
Infrared Distance: 66 ft
Infrared LEDs: Yes
Video Capture: 1080 x 1080 @ 24 fps, 2112 x 2112 @ 24 fps, 2880 x 2880 @ 15 fps
Angular Field of View (H, Min, Degree): 180
Angular Field of View (V, Min, Degree): 180
Total Pixels: 12,400,000 pixels
Image Sensor Size: 1/2.3"
Image Sensor Type: CMOS
Lens Aperture: F/2.0
Min Focal Length: 1.6 millimetre
Sensor Size (metric): 11 mm (1/2.3")
Digital Video Capture Resolution: 1080 x 1080, 2112 x 2112, 2880 x 2880
Max Frame Rate: 24 frames per second
Shutter Speed (Max): 1/32000 second (time unit)
Shutter Speed (Min): 1/30 second (time unit)
Focal Length Control: Fixed focal
Video Formats: H.264
Video Input: Color
Audio Support: Yes
Audio Support Features: Built-in three microphones
Touchscreen: No
Max Video Resolution: 2880 x 2880
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Physical Characteristics
Indoor/Outdoor: Outdoor
Form Factor: Fisheye
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 2.7 inch
Width: 5.4 inch
Depth: 5.4 inch
Weight: 2.31 lbs
Included Items
Included Accessories: Wall mount kit
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
