Product Information

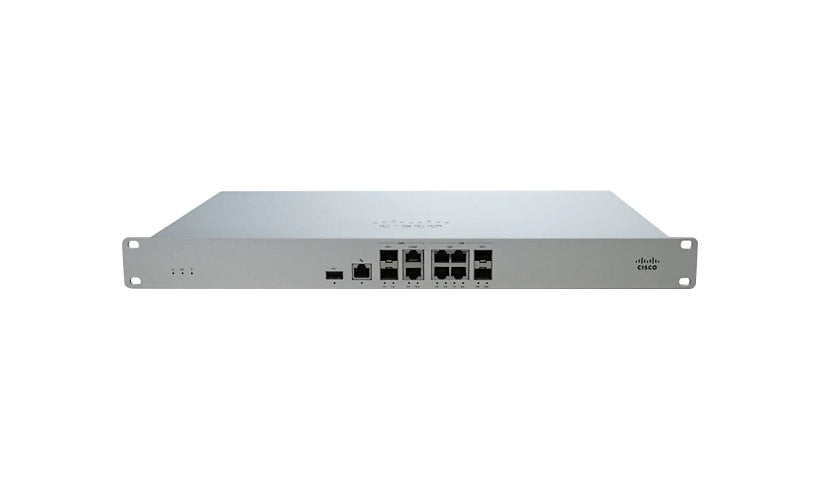

The Cisco Meraki MX105 is a 1U cloud managed security and SD-WAN appliance for larger branches. It is rated at 5 Gbps stateful firewall, 2.5 Gbps NGFW and 3.5 Gbps VPN. Uplinks include two 2.5G RJ-45 WAN ports (one with PoE+) and two 10G SFP+ WAN ports, with two SFP+ and four Gigabit RJ-45 LAN ports, a management port, USB 3.0 and two power supplies. Typical draw is about 53 W. A Meraki license is needed to operate it.
Key Features
- 5 Gbps stateful firewall
- 3.5 Gbps VPN
- 2 x 2.5G + 2 x 10G SFP+ WAN
- 2 x SFP+ + 4 x 1G LAN
- Dual power supplies
- 1U, cloud managed
Product Information
Brand: Cisco Meraki
Manufacturer: Meraki
Product Line: Cisco Meraki
Model: MX105
Product Type: Security appliance
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: DHCP, IPSec, L2TP, PPPoE
Network Device: Next-generation firewall performance: 2.5 Gbps, Stateful firewall throughput: 5 Gbps, VPN throughput: 3.5 Gbps
Features: 3G/4G USB Dongle Support, Content filtering, DMZ port, Event log, Firewall protection, Firmware upgradable, IPSec Virtual Private Network (VPN), NAT support, Quality of Service (QoS), Stateful Packet Inspection Firewall (SPIF), Static routing, Syslog support, Traffic shaping, VLAN support
Connectivity
Ports: 10
Interface Provided: 1 x 2.5 GBase-T - RJ-45 (WAN), 1 x 2.5 GBase-T (PoE+) - RJ-45 (WAN), 1 x management - RJ-45, 1 x USB 3.0 - Type A, 2 x 10Base-T - SFP+, 2 x 10GBase-T - SFP+ (WAN), 4 x 1000Base-T - RJ-45
Power
Device Type: Internal power supply
Required Voltage: AC 100-127/200-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 53 watt
Power Supplies Installed: 2
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Dimensions and Weight
Height: 1.7 inch
Width: 19.1 inch
Depth: 12.4 inch
Weight: 10.74 lbs
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
