Product Information

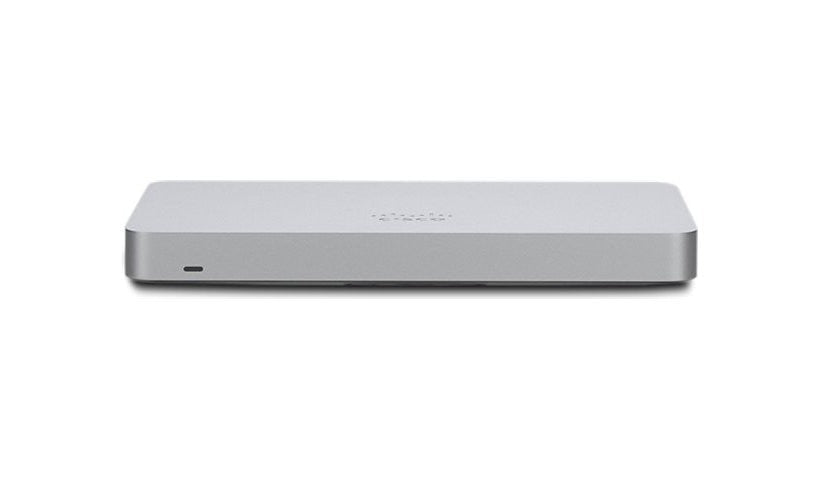

The Cisco Meraki MX68 is a cloud managed desktop security appliance for small sites of up to about 50 users. It is listed at 700 Mbps firewall, 400 Mbps advanced security and 400 Mbps VPN. It has two Gigabit WAN ports, ten Gigabit LAN ports (two with PoE+) and a USB 2.0 port. This is the wired model without built in Wi-Fi, please confirm. A Meraki license is needed to operate it.
Key Features
- 700 Mbps firewall
- 400 Mbps VPN
- Up to about 50 users
- 2 x 1G WAN
- 10 x 1G LAN, 2 with PoE+
- Desktop, cloud managed
Product Information
Brand: Cisco Meraki
Manufacturer: Meraki
Product Line: Cisco Meraki
Model: MX68
Product Type: Security appliance
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: DHCP, IPSec, L2TP, PPPoE
Routing Protocol: MPLS, Static IP routing
Capacity: Maximum number of users: 50
Network Device: Advanced security throughput: 400 Mbps, Firewall throughput: 700 Mbps, VPN throughput: 400 Mbps
Features: 3G/4G USB Dongle Support, 802.1x authentication, Content filtering, DHCP support, DMZ support, Firewall protection, Firmware upgradable, Intrusion Detection System (IDS), Intrusion Prevention System (IPS), IP Security (IPSec) support, IPSec Virtual Private Network (VPN), Layer 7 switching, Link Aggregation, Load balancing, MPLS VPN, NAT support, Quality of Service (QoS), Static routing, Traffic shaping, VLAN support, VPN client, Wall mountable
Connectivity
Ports: 10
Interface Provided: 1 x USB 2.0 - Type A, 2 x 1000Base-T - RJ-45 (WAN), 2 x 1000Base-T (PoE+) - RJ-45, 8 x 1000Base-T - RJ-45
Power Over Ethernet (PoE): PoE+
Power
Device Type: External power adapter
Power Provided: 100 watt
Power Supplies Installed: 1
Power Supplies Supported: 1
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Desktop
Dimensions and Weight
Height: 1.1 inch
Width: 11.2 inch
Depth: 5.8 inch
Weight: 2.47 lbs
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - advance hardware replacement - lifetime - response time: next day
