Product Information

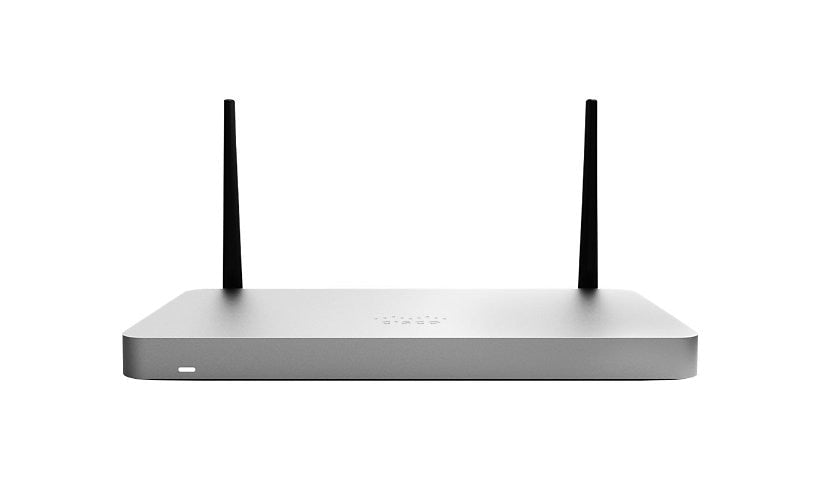

The Cisco Meraki MX68CW is a cloud managed desktop security appliance with dual band Wi-Fi 5 and a built in LTE modem (nano SIM), listed at 700 Mbps firewall and advanced security and 300 Mbps VPN, with up to 50 VPN tunnels. It has two Gigabit WAN ports and Gigabit LAN ports including two PoE+, USB and two external antennas, and includes a mounting kit.
Key Features
- Cloud managed security appliance
- Wi-Fi 5 + LTE modem
- 700 Mbps NGFW (listed)
- 2 x Gigabit WAN
- LAN ports incl. 2 x PoE+
- North America model
Product Information
Brand: Cisco Meraki
Manufacturer: Meraki
Product Line: Cisco Meraki
Model: MX68W
Product Type: Security appliance
Packaged Quantity: 1
Color Category: Gray
Country: North America
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: DHCP, IPSec, L2TP, PPPoE
Remote Management: HTTP
Routing Protocol: MPLS, Static IP routing
Data Transfer Rate: 1.3 GBps
Capacity: VPN tunnels: 50
Wireless LAN: 802.11a/b/g/n/ac Wave 2
Network Band: 2.4 GHz, 5 GHz
Cellular Data Connectivity Technology: LTE
Network Device: Advanced security throughput: 700 Mbps, NGFW throughput: 700 Mbps, VPN throughput (SD-WAN, site-to-site): 300 Mbps
Antennas: 2
Antenna Form Factor: External detachable
Features: 3G/4G USB Dongle Support, 802.1x authentication, Content filtering, DHCP support, DMZ support, Firewall protection, Firmware upgradable, Intrusion Detection System (IDS), Intrusion Prevention System (IPS), IP Security (IPSec) support, IPSec Virtual Private Network (VPN), Layer 7 switching, Link Aggregation, Load balancing, MPLS VPN, NAT support, Quality of Service (QoS), Static routing, Traffic shaping, VLAN support, VPN client, Wall mountable
Connectivity
Ports: 10
Interface Provided: 1 x USB 2.0 - Type A, 2 x 1000Base-T - RJ-45 (WAN), 2 x 1000Base-T (PoE+) - RJ-45, 8 x 1000Base-T - RJ-45
Expansion Slots: 1 Nano SIM card
Power Over Ethernet (PoE): PoE+
Power
Device Type: External power adapter
Power Provided: 100 watt
Power Supplies Installed: 1
Power Supplies Supported: 1
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Desktop
Built-in Devices: Modem
Dimensions and Weight
Height: 1.1 inch
Width: 11.2 inch
Depth: 7 inch
Weight: 2.6 lbs
Included Items
Included Accessories: Mounting kit, SIM card ejector
Cables: 2 x network cable
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3at
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - advance hardware replacement - lifetime - response time: next day
