Product Information

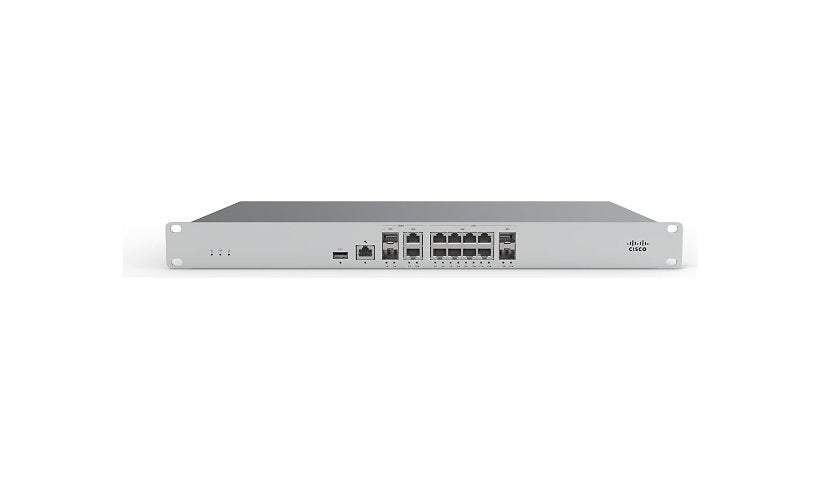

The Cisco Meraki MX85 is a 1U cloud managed security and SD-WAN appliance recommended for up to 250 devices. It is listed at 1 Gbps stateful firewall, NGFW, advanced security and site to site VPN throughput, with up to 200 site to site VPN tunnels. Ports include two Gigabit WAN uplinks (one with PoE+), two SFP WAN ports, two SFP LAN ports, eight Gigabit RJ-45 LAN ports, a management port and USB 3.0 for a cellular uplink. Typical power draw is about 12 W. A Meraki license is needed to operate it.
Key Features
- 1 Gbps firewall and VPN
- Up to 250 devices
- 200 site to site VPN tunnels
- Gigabit and SFP WAN uplinks
- USB 3.0 cellular uplink
- 1U, cloud managed
Product Information
Brand: Cisco Meraki
Manufacturer: Meraki
Product Line: Cisco Meraki
Model: MX85
Product Type: Security appliance
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management: Syslog
Routing Protocol: Static IP routing
Authentication Method: Active Directory
Capacity: Recommended number of devices: up to 250, VPN tunnels (site-to-site): 200
Network Device: Advanced security throughput: 1 Gbps, Next-generation firewall performance: 1 Gbps, NGFW throughput: 1 Gbps, Stateful firewall throughput: 1 Gbps, VPN throughput (site to site): 1 Gbps
Features: Advanced Malware Protection, Auto firmware update, Content filtering, DHCP support, DNS Application Firewall (DAF), IDS/IPS support, L2TP over IPSec, NetFlow, SD-WAN support, Traffic shaping, Usage statistics, VLAN support, VPN client, WAN failover, WAN load balancing
Connectivity
Interface Provided: 1 x 1000Base-T - RJ-45 (WAN), 1 x 1000Base-T (management) - RJ-45, 1 x 1000Base-T (PoE+) - RJ-45 (WAN), 1 x USB 3.0 - Type A (WAN), 2 x 1000Base-T - SFP, 2 x 1000Base-T - SFP (WAN), 8 x 1000Base-T - RJ-45
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 12 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95%
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.7 inch
Width: 19.1 inch
Depth: 9.8 inch
Weight: 8.16 lbs
Certifications and Listing
Compliant Standards: FCC
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - advance parts replacement - lifetime - response time: next day
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
