Product Information

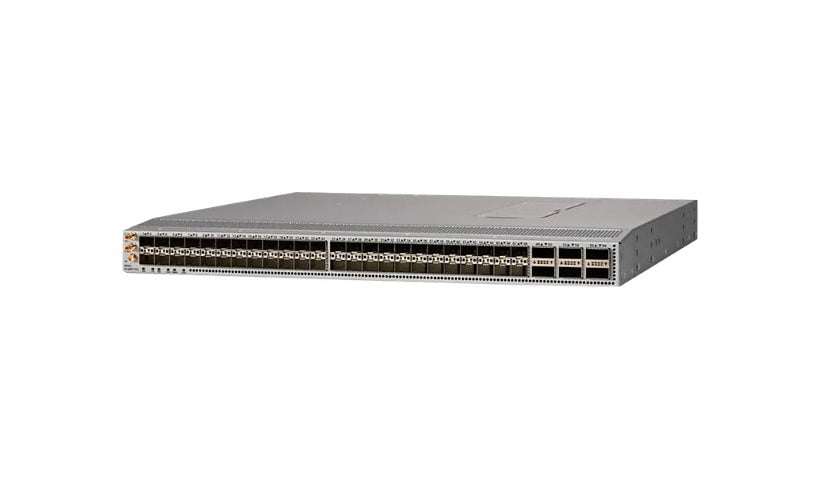

The Cisco Nexus 93180YC-FX3 is a 1RU data center switch with 48 downlink ports at 1/10/25G and six uplinks at 40/100G. It provides 3.6 Tbps of bandwidth and runs Cisco NX-OS, with Layer 3 features and data center bridging. Power supplies are hot-plug with N+1 redundancy supported.
Key Features
- 48 x 1/10/25G SFP28 ports
- 6 x 40/100G QSFP28 uplinks
- 3.6 Tbps bandwidth
- Layer 3, NX-OS 10.1.1, 32 GB RAM
- Hot-plug power, N+1 redundant supported
- 1RU rack mount
Product Information
Brand: Cisco
Manufacturer: Cisco Systems
Product Line: Cisco Nexus
Model: 93180YC-FX3
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Advanced Switching: Layer 3
Switching Type: 25 Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, HTTP, HTTPS, IPv6, JSON, NETCONF, RESTCONF
Routing Protocol: BGP, ECMP, EIGRP, HSRP, MPLS, MSDP, OSPF, PIM-SM, PIM-SSM, RIP-2, RSVP
Performance: Bandwidth: 3.6 Tbps
Capacity: ACL entries (egress): 2000, ACL entries (ingress): 5000, Buffer capacity (MB): 40, ECMP paths: 64, Fabric extenders per switch: 16, Flow-table size used for Cisco Tetration Analytics platform: 64000, HSRP groups: 490, IGMP snooping groups (maximum): 32000, IGMP snooping groups (shipping): 8000, IP host entries: 1792000, Longest prefix match (LPM) routes: 1792000, Maximum number of links in a port channel: 32, MST instances: 64, Multicast routes: 128000, NAT entries: 1023, Port channels: 512, Queues: 8, RPVST instances: 3967, SPAN sessions: 4, VLANs supported: 4096, VRF instances (maximum): 16000, VRF instances (shipping): 1000
MAC Address Table Size: 512K entries
Features: 4 fans, Access Control List (ACL) support, Approximate Fair Dropping (AFD), Data Center Bridging (DCB), Data Center Bridging Exchange (DCBX) support, Dynamic Packet Prioritization (DPP), Elephant Trap (ETRAP), Enhanced transmission selection (ETS), Ethernet Virtual Private Network (EVPN), Explicit Congestion Notification (ECN), Flow control, Media Access Control Security (MACsec), NAT support, Precision Time Protocol (PTP), Priority-Based Flow Control (PFC), RDMA support, Switched Port Analyzer (SPAN), Synchronous Ethernet (SyncE), Virtual Extensible LAN (VXLAN), Virtual PortChannel (vPC) technology, VXLAN tunnel endpoints (VTEP) support
Software Type: Cisco NX-OS 10.1.1
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 1/10/25 Gigabit SFP+
Ports (2nd) Quantity: 6
Ports Type (2nd): 40/100 Gigabit QSFP28
Interface Provided: 1 x management RJ-45, 1 x serial (RS-232), 1 x ToD RJ-45, 1 x USB, 48 x 1/10/25GBase-X SFP+, 6 x 40/100GBase-X QSFP28
Power
Device Type: Internal power supply
Power Consumption Operational: 375 watt
Power Supplies Supported: 2
Redundant Power Supply Supported: N+1
Redundant Power Supply: Optional
Hot-Plug: Hot-plug
Memory and Processor
RAM Installed: 32 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
MTBF: 288,760 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Built-in Devices: 128 GB SSD
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 19.5 inch
Weight: 20.99 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1ae, ITU-T G.8275.1
Compliant Standards: AS/NZS 60950-1, AS/NZS CISPR22 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, CISPR 22 Class A, CISPR 24, CNS 13438 Class A, Directive 2004/108/EC, Directive 2006/95/EC, EN 300 386, EN 55022 Class A, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55024, FCC CFR47 Part 15 A, GB 4943, ICES-003 Class A, IEC 60950-1 Second Edition, IEEE 1588, ITU-T G.8273.2 Class B, KN 61000-4, KN22 Class A, RoHS 6/6, UL 60950-1 Second Edition, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
