Product Information

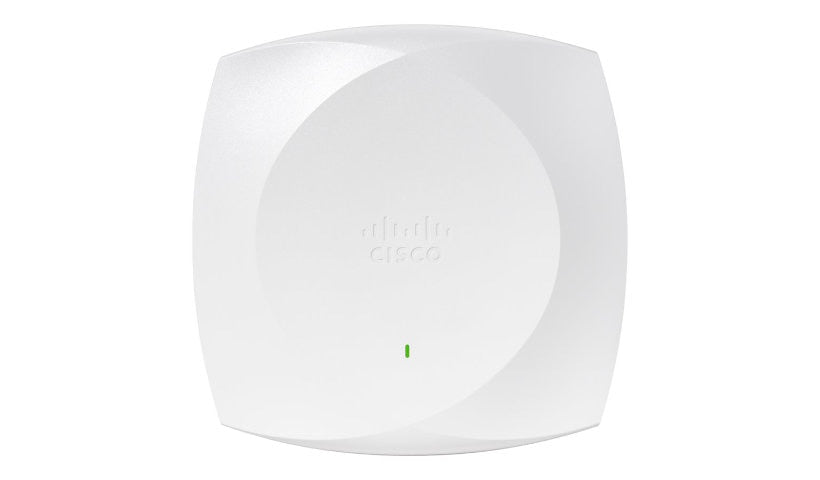

Cisco's Wireless 9176I (CW9176I-CFG) is an indoor Wi-Fi 7 access point with internal omnidirectional antennas and 12 spatial streams, rated up to 18 Gbps across 2.4, 5 and 6 GHz. It has a 10G multi-gig UPOE uplink, built in GPS/GNSS for location and Bluetooth LE. The power injector or adapter is not included.
Key Features
- Wi-Fi 7 tri-band: 2.4, 5, 6 GHz
- Up to 18 Gbps, 12 spatial streams
- 100M to 10G RJ-45 uplink (UPOE)
- Built-in GPS/GNSS, Bluetooth LE
- 4 GB RAM, 16 GB flash
- Power injector not included
Product Information
Brand: Cisco
Manufacturer: Cisco Systems
Product Line: Cisco Wireless
Model: 9176I
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Bluetooth LE, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n
Authentication Method: EAP-FAST, EAP-SIM, Extensible Authentication Protocol (EAP), MS-CHAP, MS-CHAP v.2
Encryption: 128-bit AES-GCMP, 256-bit AES-GCMP, 256-bit SHA, AES, EAP-FAST, EAP-GTC, EAP-MSCHAPv2, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, PEAPv1, WPA2, WPA3
Data Transfer Rate: 18 GBps
Line Coding Format: 4096 QAM, OFDMA
Capacity: Spatial streams: 12
Wireless LAN: 802.11a/b/g/n/ac/ax/be, Bluetooth LE
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Spread Spectrum Method: OFDMA
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: Internal
Directivity: Omni-directional
Operating System Required: Cisco IOS XE 17.15.2 or later
Features: 4x4:4 MU-MIMO technology, 802.1x authentication, Band steering, Beamforming technology, BSS Coloring, Cisco Trust Anchor module, Cyclic shift diversity (CSD), Dynamic Frequency Selection (DFS), Image signing, Integrated Ultra-Wideband (UWB), LLDP support, Maximal Ratio Combining, Maximum Ratio Combining (MRC), Multi-Link Operation (MLO), Packet aggregation A-MPDU, Packet aggregation A-MSDU, Preamble puncturing, Secure Boot, Target Wake Time (TWT), Uplink/downlink MU-MIMO, XOR
Connectivity
Interface Provided: 1 x 100M/1G/2.5/5/10 Gigabit Ethernet (UPOE) - RJ-45, 1 x management - RJ-45, 1 x USB 2.0
Power Over Ethernet (PoE): UPOE
Power
Device Type: External power adapter / power injector (not included)
Memory and Processor
RAM Installed: 4096 megabyte
Flash Memory Installed: 16 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: External
Status Indicators: Status
Built-in Devices: GNSS receiver, GPS
Dimensions and Weight
Height: 2 inch
Width: 9.4 inch
Depth: 9.4 inch
Weight: 3.44 lbs
Certifications and Listing
Compliant Standards: 47 CFR Part 2.1091, AS/NZS 2772:2016, AS/NZS 4268, AS/NZS 60950-1, AS/NZS 62368-1 Third Edition, AS/NZS CISPR32:2015+AMD1:2020, CAN/CSA-C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1 Third Edition, CISPR 32:2015+AMD1:2019, Class 3, CNS 13438 (2006), EN 300 328, EN 301 489-1 V2.2.3 (2019-11), EN 301 489-17 V3.2.4 (2020-09), EN 301 893, EN 303 687, EN 50385:2017, EN 55032:2015/A11:2020, EN 55035:2017+A11:2020, EN 60601-1-2:2015 + A1:2021, EN 60950-1, EN 61000-3-3:2013+A1:2019, EN 61000-6-1:2019, EN 62368-1 Third Edition, EN IEC 61000-3-2:2019/A1:2021, FCC 47 CFR part 15 B class B, FCC CFR 47 Part 15C, ICES-003 issue 7 Class B, IEC 60950-1, IEC 62368-1 Third Edition, Japan Std. 66, Japan Std. 71, KS C 9832:2019, KS C 9835:2019, KS X 3124:2020, KS X 3126:2020, LP0002, QCVN 112:2017/BTTTT, QCVN 118:2018/BTTTT, QCVN 18:2014, RSP-100, RSS-102, RSS-247, RSS-GEN, UL 2043, UL 60950-1, UL 62368-1 Third Edition, VCCI-CISPR 32:2016, WEEE
Compliant Standards: IEEE 802.11, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, Wi-Fi CERTIFIED 6, Wi-Fi CERTIFIED 6E, Wi-Fi CERTIFIED 7
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - replacement - lifetime - response time: 5 days
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
