Product Information

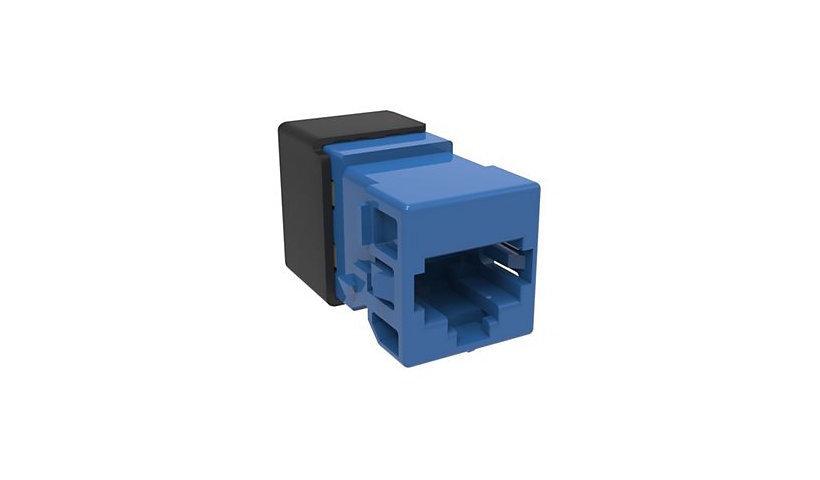

The CommScope Uniprise M-Series modular jack delivers reliable Cat6A UTP connectivity in a single RJ45 port. It supports IEEE 802.3bt PoE and meets ANSI/TIA-568.2-D, ISO/IEC 11801, IEC 60603-7 and UL 94 V-0.
Key Features
- Cat6A UTP RJ45 jack
- PoE up to 802.3bt
- TIA-568.2-D, ISO/IEC 11801
- UL 94 V-0
Product Information
Brand: Uniprise
Manufacturer: Commscope
Product Line: Uniprise M-Series
Model: 760257321
Product Type: Modular insert
Category: Patch panels, outlets and components
Connectivity
Connectors Provided: 1 x RJ-45
Dimensions and Weight
Width: 0.7 inch
Height: 0.7 inch
Depth: 1.2 inch
Material: PC/ABS
Color: Blue
Included Item
Packaged Quantity: 1
Additional Information
Ports: 1 port
Max Operating Temperature: 140 degree Fahrenheit
Min Operating Temperature: 14 degree Fahrenheit
Operating Humidity: Up to 95% (non-condensing)
Cable & Wiring Technology: Unshielded twisted pair (UTP)
Intended For: For 22 - 24 AWG solid wire, For 24 - 26 AWG stranded wire, Gold-plated contacts
Lock Method: CAT 6a
Wall Outlet Connectors: RJ-45
Certifications and Listing
Compliant Standards: IEEE 802.3bt
