Product Information

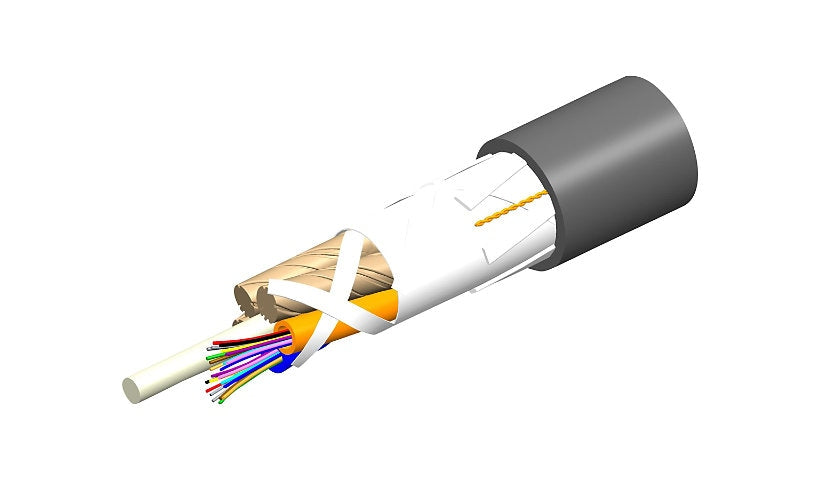

A CommScope TeraSPEED 12-fiber singlemode bulk cable (G.652.D / G.657.A1 / OS2) rated OFNP plenum for indoor and outdoor runs. It has an all-dielectric, gel-free, loose tube, non-armored design with a UV-resistant PVDF jacket and ripcord, and it runs from -40 to 70°C.
Specifications:
Brand: CommScope
Manufacturer part number: 760106880
Product line: CommScope TeraSPEED
Cable type: Bulk cable
Fiber mode: Singlemode
Coating: 250 micron
Fiber count: 12
Jacket: Polyvinylidene fluoride (PVDF)
NEC marking: OFNP
Features: Indoor / outdoor, Plenum, All-dielectric, Gel-free, Loose tube, Non-armored, Ripcord, UV-resistant
Diameter: 0.4 inch
Color: Black
Operating temperature: -40°F to 158°F
Quantity in package: 1
Standards and compliance: G.652.D / G.657.A1/OS2, ANSI/ICEA S-104-696, C-ETL, EN 187105, ETL, FOTP-104, FOTP-25, FOTP-3, FOTP-33, FOTP-37, FOTP-41, FOTP-82, FOTP-85, FOTP-98, GR-409, IEC 60794-1-E1, IEC 60794-1-E11, IEC 60794-1-E3, IEC 60794-1-E4, IEC 60794-1-E6, IEC 60794-1-E7, IEC 60794-1-F1, IEC 60794-1-F15, IEC 60794-1-F5, IEC 60794-1-F9, ISO 9001:2015, NFPA 130, NFPA 262, OFNP
