Product Information

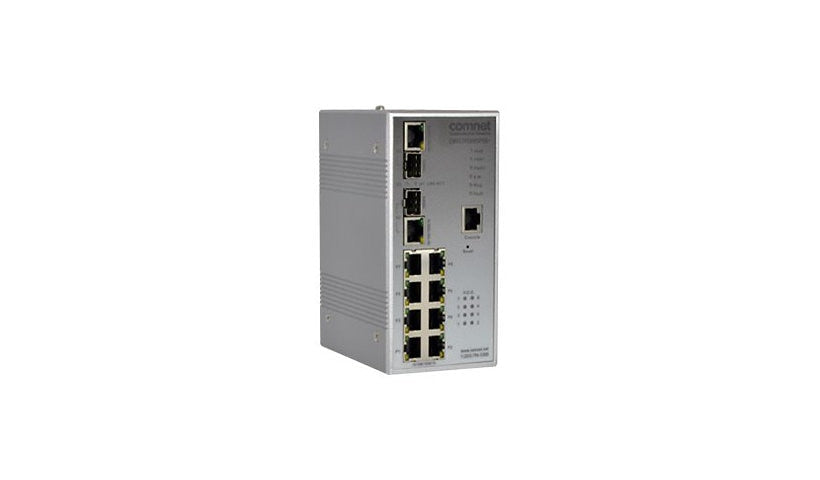

ComNet's CNGE2FE8MSPOE+ is a managed industrial switch with eight 10/100 PoE+ ports and two combo Gigabit SFP uplinks. It runs from -40 to 167 F with redundant power and mounts on a DIN rail or wall, with VLAN, QoS, IGMP snooping and RSTP support.
Key Features
- 8 x 10/100 RJ-45 PoE+ ports
- 2 x combo Gigabit SFP ports
- -40 to 167 F operating range
- Redundant power
- Managed, VLAN, QoS, RSTP
- DIN rail or wall mount
Product Information
Brand: COMNET
Manufacturer: CONNECTOR
Product Line: ComNet
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Silver
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, SNMP 1, SNMP 2c, SNMP 3, Telnet
Routing Protocol: IGMPv2, IGMPv3
Performance: Switching bandwidth: 5.6 Gbps, Switching latency: 7 µs
Capacity: IGMP multicast groups: 1024, Priority queues: 4, VLANs supported: 4096
MAC Address Table Size: 8192 entries
Features: DHCP server, DiffServ support, GVRP, IGMP snooping, MDI/MDI-X switch, MSTP support, Multicast filtering function, MVR, Port configuration, Port trunking, Quality of Service (QoS), RSTP, STP support, TOS Precedence, VLAN support, VLAN Tagging
Features: Overload Current Protection
Connectivity
Ports: 10
Port Quantity: 8
Port Type: 10/100
Ports (2nd) Quantity: 2
Ports Type (2nd): Combo Gigabit SFP
Interface Provided: 2 x 1000Base-X SFP, 8 x 100Base-TX RJ-45
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Required Voltage: DC 48 - 57 volt
Power Consumption Operational: 249 watt
PoE Budget: 30 watt
Redundant Power Supply: Yes
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 185 degree Fahrenheit
MTBF: 100,000 Hours
Physical Characteristics
Form Factor (Hubs & Switches): DIN rail mountable, Wall-mountable
Status Indicators: Fault, Port status, Power, PSE, Ring master
Dimensions and Weight
Height: 6 inch
Width: 2.8 inch
Depth: 4.1 inch
Weight: 28.92 ounce
Certifications and Listing
Compliant Standards: EN 60950-1, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN55022, FCC Part 15 A, IEC 60068-2-27, IEC 60068-2-6
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
