Product Information

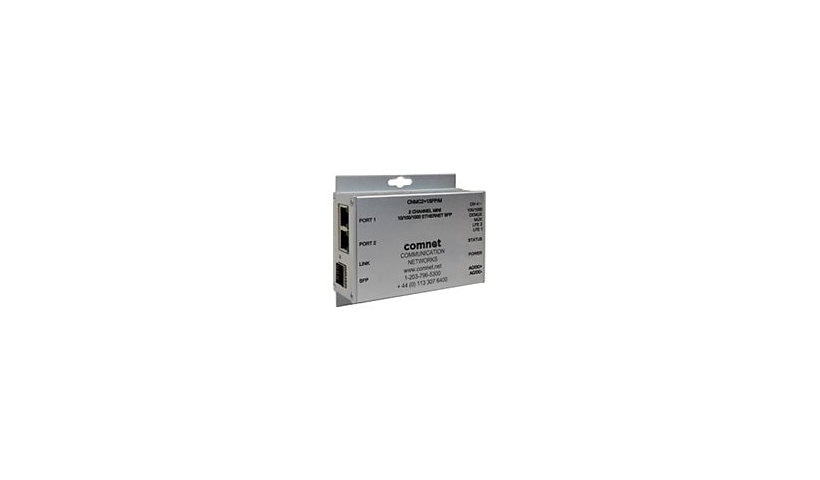

The Comnet CNMC2+1SFP/M links RJ-45 copper to an SFP fiber port for Ethernet, Fast Ethernet and Gigabit Ethernet at up to 1 Gbps. It runs from -40 to 75°C at 0 to 95% non-condensing humidity and mounts on a wall or DIN rail. Auto-negotiation, DIP switches and Link Fault Pass Through make setup and troubleshooting easy, it has an MTBF of 100,000 hours, and it meets FCC Part 15, RoHS and NEMA TS-1/TS-2.
Specifications:
Brand: COMNET
Manufacturer part number: CNMC2+1SFP/M
Product line: Comnet
Cable type: Fiber media converter
Data rate: 1 GBps
Features: Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Automatic Resettable Solid-State Current Limiters, Built-in DIP switch, Full duplex mode, Half duplex mode, Link Fault Pass Through function (LFP)
Height: 1.1 inch
Width: 4.1 inch
Color: Gray
Operating temperature: -40°F to 167°F
Quantity in package: 1
Standards and compliance: cULus, FCC Part 15, NEMA TS-1, NEMA TS-2, RoHS, WEEE, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Warranty: Limited Lifetime
MTBF: 100,000 hours
