Product Information

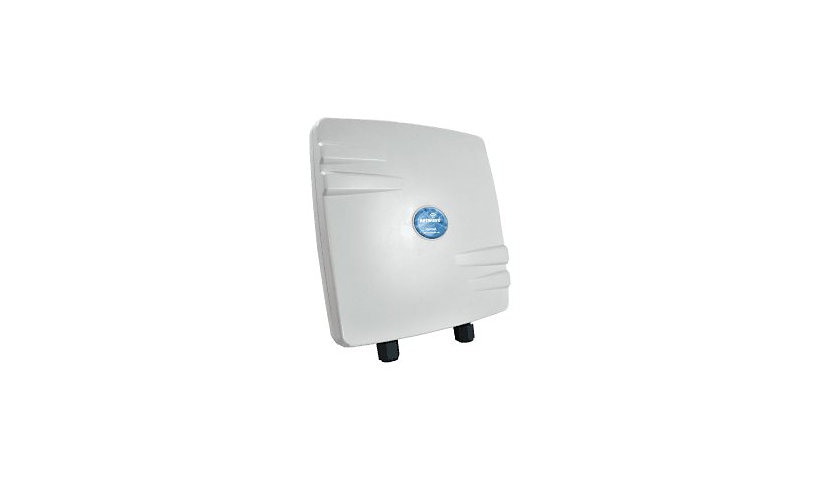

ComNet's NetWave NW1 is a pole mount 5 GHz wireless bridge with dual internal antennas at 19 dBi, giving links up to about 2 miles. It is IP67 rated, works from -40 to 158 °F, has a 10/100 PoE port and comes with a PoE injector. This is a wireless bridge, not an access point.
Key Features
- 5 GHz 802.11a/n bridge
- 19 dBi directional antennas
- Range up to 2 miles
- 10/100 RJ-45, PoE injector included
- IP67, -40 to 158 °F
- About 3.5 W
Product Information
Brand: COMNET
Manufacturer: CONNECTOR
Product Line: Comnet NetWave
Model: NW1
Product Type: Wireless bridge
Packaged Quantity: 1
Color Category: Gray
Country: North America
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Ethernet, Fast Ethernet, IEEE 802.11a, IEEE 802.11b
Remote Management: SNMP 2c, Syslog, Telnet
Bridge & Router: Throughput: 95 Mbps
Encryption: AES, TKIP, WPA2
Data Transfer Rate: 95 MBps
Wireless LAN: 802.11a/n
Broadband Transmission Technology: 5 GHz
Antennas: 2
Antenna Form Factor: Internal
Antenna Gain Level: 19 DBi
Max Range Open Space: 2 miles
Directivity: Directional
Features: DHCP client, DHCP server, MIMO technology, NTP client, Polycarbonate enclosure, Spanning Tree Protocol (STP) support
Connectivity
Interface Provided: LAN: 10Base-T/100Base-TX (PoE) - RJ-45
Power
Device Type: External power adapter
Required Voltage: DC 24 / 48 volt
Power Consumption Operational: 3.5 watt
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
MTBF: 100,000 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Pole-mountable
Mounting Kit: Included
Status Indicators: LAN, Power, Signal strength
Dimensions and Weight
Height: 10.1 inch
Width: 10.1 inch
Depth: 3.4 inch
Included Items
Included Accessories: PoE injector
Certifications and Listing
Compliant Standards: FCC, IP67, RoHS, WEEE
Compliant Standards: IEEE 802.3af
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service & Support Details: Limited warranty, Limited warranty - lifetime
Service Activation: No
