Product Information

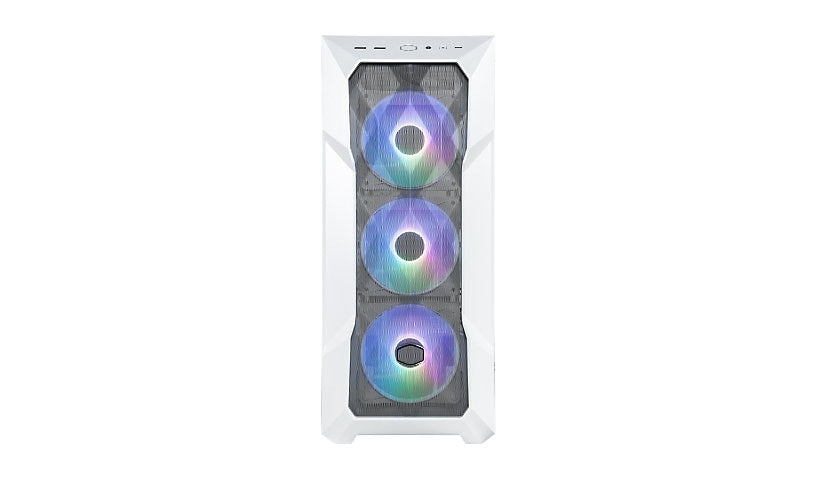

The Cooler Master MasterBox TD500 Mesh V2 (TD500V2-WGNN-S00) is a white mid tower case with a polygonal mesh front and tempered glass side, with no power supply included. It fits SSI CEB, E-ATX, ATX, micro ATX and Mini-ITX boards, CPU coolers up to 165 mm, graphics cards up to 410 mm and power supplies up to 200 mm. Three 120 mm ARGB front fans, an ARGB hub and controller are included, and it supports up to 360 mm radiators front and top. It has a PSU shroud, removable drive cage, dust filters, a tool-less side panel, two 3.5 in and three 2.5 in bays, seven slots and front USB 3.2 Gen 2, two USB 3.2 Gen 1 and audio jacks.
Key Features
- Mid tower, mesh front
- 3 ARGB fans included
- 360 mm radiator support
- 410 mm GPU clearance
- Tempered glass side
- No power supply
Product Information
Brand: Cooler Master
Manufacturer: Cooler Master
Product Line: Cooler Master MasterBox
Model: TD500 Mesh V2
Manufacturer Form Factor: Mid tower
Packaged Quantity: 1
Color: White
Color Category: White
Connectivity
Front Panel Connectors: USB/Audio
Expansion Bays: 2 (total) / 2 (free) x internal - 3.5", 3 (total) / 3 (free) x internal - 2.5"
Interface Provided: 1 x audio line-out/line-in - mini-jack, 2 x USB 3.2 Gen 1, USB 3.2 Gen 2
Expansion Slots: 7
Power
Power Device Type: No power supply
Technical Information
Form Factor (Motherboard): SSI CEB
Motherboard Supported: ATX, Extended ATX, microATX, Mini-ITX, SSI CEB
Cooling System: Front: 120 mm fan x 3 / ARGB fan, Rear: fan mount / 1 x 120 mm fan supported, Top: fan mount / 3 x 120 mm or 2 x 140 mm fan supported
CPU Cooler Max Height: 165 millimetre
Internal Bays: 5
System Cabinet Features: Bottom dust filter, Cable management system (19 mm clearance), Front dust filter, Meshed front panel, PSU shroud with removable cover, Removable HDD cage, Removable top panel, Supports 120 mm radiator in rear, Supports 120/140/240/280/360 mm radiator in front panel, Supports 120/140/240/280/360 mm radiator in top, Tool-less side panel, Top panel dust filter
Video Card Max Length: 410 millimetre
Specification Compliance: ATX
Power Supply Max Length: 200 millimetre
Touchscreen: No
Physical Characteristics
Form Factor: Tower
Materials: Plastic, Steel, Tempered glass
Built-in Devices: ARGB fan hub, ARGB LED controller
Dimensions and Weight
Height: 19.7 inch
Width: 8.3 inch
Depth: 19.6 inch
Weight: 16.98 lbs
Certifications and Listing
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
