Product Information

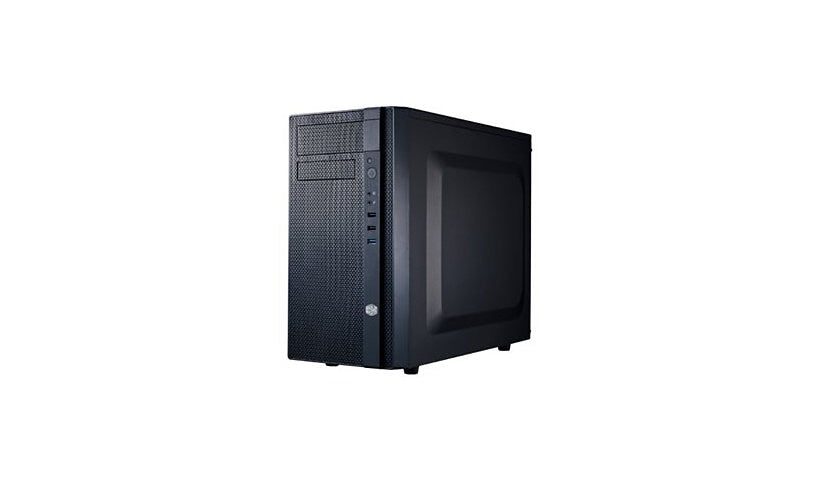

The Cooler Master N200 is a compact mini tower PC case for micro ATX and Mini-ITX boards, with no power supply included. It has an all mesh front panel and ships with a 120 mm front and a 120 mm rear fan, with room for another front fan plus side and top 120 mm fans, and supports 120 or 240 mm front radiators and a 120 mm rear radiator. It fits CPU coolers up to 160 mm and graphics cards up to 355 mm, has one 5.25 in and one 3.5 in external bay, two 3.5 in and four 2.5 in internal bays and four expansion slots. The front panel has USB 3.0, two USB 2.0 and audio jacks, with removable dust filters, in midnight black.
Key Features
- Micro ATX mini tower
- Mesh front panel
- 2 fans included
- 240 mm front radiator
- 355 mm GPU clearance
- No power supply
Product Information
Brand: Cooler Master
Manufacturer: Cooler Master
Product Line: Cooler Master
Model: N200
Manufacturer Form Factor: Tower
Packaged Quantity: 1
Color: Midnight Black
Color Category: Black
Connectivity
Front Panel Connectors: USB/Audio
Expansion Bays: 1 (total) / 1 (free) x front accessible - 3.5", 1 (total) / 1 (free) x front accessible - 5.25", 2 (total) / 2 (free) x internal - 3.5", 4 (total) / 4 (free) x internal - 2.5"
Interface Provided: 1 x audio line-out - mini-jack, 1 x microphone - mini-jack, 1 x USB 3.0, 2 x USB 2.0
Expansion Slots: 4
Power
Power Device Type: No power supply
Technical Information
Form Factor (Motherboard): Mini ITX / micro ATX
Motherboard Supported: microATX, Mini-ITX
Cooling System: Front: 120 mm fan x 1 / 2 x 120 mm fan supported, Rear: 120 mm fan x 1, Side: 120 mm fan mount x 1, Top: 120 mm fan mount x 1
CPU Cooler Max Height: 160 millimetre
Front Accessible Bays: 2
Internal Bays: 6
System Cabinet Features: Floor dust filter, Liquid cooling holes, Meshed front panel, Removable dust filter
Video Card Max Length: 355 millimetre
Specification Compliance: ATX / PS/2
Physical Characteristics
Form Factor: Tower
Dimensions and Weight
Height: 14.9 inch
Width: 8 inch
Depth: 17.5 inch
Weight: 9.48 lbs
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Not sure this case fits your build? Send us your motherboard size, drives, power supply and cooling plans, and the DatorPro team will help you confirm the right case before you order.
