Product Information

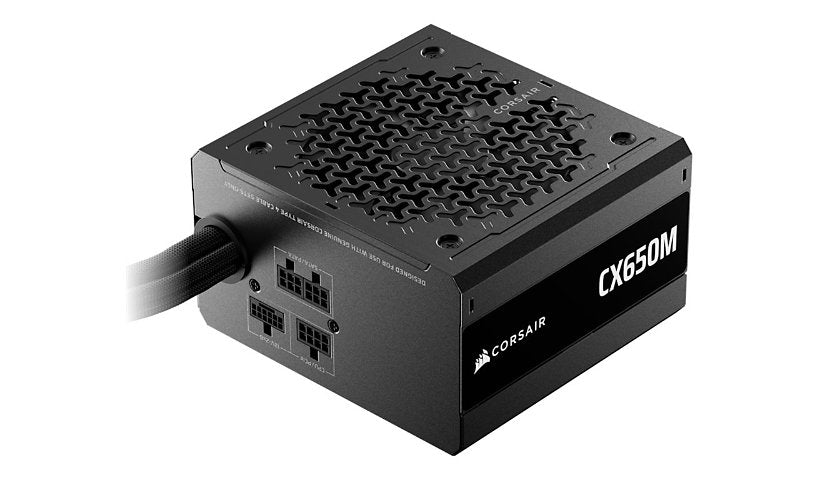

The Corsair CX650M is a 650 W semi-modular power supply with 80 PLUS Bronze efficiency, a good choice for basic builds and upgrades. It is ATX 3.1 compliant with a 12V-2x6 PCIe 5.1 connector, uses a thermally controlled 120 mm fan and has black sleeved cables. It carries a 7 year limited warranty.
Key Features
- 650 W output, 80 PLUS Bronze, 85% efficiency
- ATX12V 3.1 and EPS12V
- 1 x 12V-2x6, 4 x 8-pin PCIe, 6 x SATA
- Semi-modular, black sleeved cables
- LLC full bridge, DC-DC, full protections
- 7 year limited warranty listed
Product Information
Brand: CORSAIR
Manufacturer: Corsair
Product Line: CORSAIR CX-M Series
Model: CX650M
Product Type: Power Supply
Subcategory: Power supplies
Packaged Quantity: 1
Color Category: Black
Country: North America
Network and Communication
Features: Sleeved cables
Power
PSU Form Factor: ATX
Modular: Yes
Required Voltage: AC 100-240 volt
Frequency: 47 - 63 hertz
Power Device Features: Cybenetics A++, DC-DC technology, LLC Full Bridge Topology, Overcurrent protection, Overheat protection, Overpower protection, Overvoltage protection, Semi-modular, Short-circuit protection
Power Output Connectors Details: 1 x 16 (12+4) pin PCI Express 5.1 12V 2x6, 1 x power 24 pin ATX with detachable 4 pin section, 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section, 3 x 4 pin internal power, 4 x 8 pin PCI Express power with detachable 2 pin section, 6 x 15 pin Serial ATA power
Power Provided: 650 watt
Form Factor (Power Device): Internal
Power Supply Compatibility: PC/Server
Efficiency: 85%
Provided Voltage: +3.3, +5, ±12 V, +5Vsb volt
Output Current: +12V - 54.2 A, +3.3V - 20 A, +5V - 20 A, +5VSB - 3 A
80 PLUS Certification: 80 PLUS Bronze
Technical Information
Cooling System: 120 mm fan
Specification Compliance: ATX12V 3.1/ EPS12V
MTBF: 100,000 Hours
Dimensions and Weight
Height: 3.4 inch
Width: 5.9 inch
Depth: 5.5 inch
Weight: 5.75 lbs
Included Items
Cables: 16-pin 12VHPWR power cable 2 ft, 4 pin internal power cable 2 ft, 8 pin PCI Express power with detachable 2 pin section modular cable 2 ft, Power 15 pin SATA cable 2 ft
Certifications and Listing
Compliant Standards: PCIe 5.1
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 7 Year
Service & Support Details: Limited warranty - 7 years
Not sure this power supply fits your system? Send us your server, workstation or PC model and current PSU details, and the DatorPro team will confirm wattage, connectors and fit before you order.
