Product Information

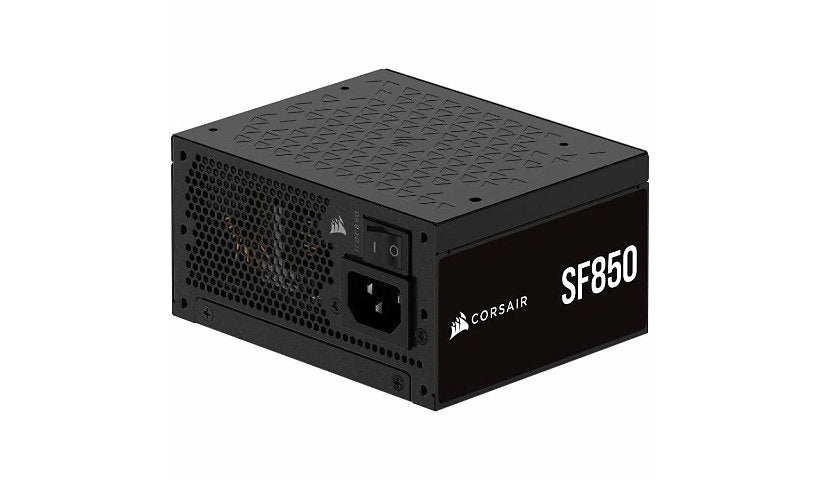

The Corsair SF850 (RPS0175) is an SFX power supply that packs 850 W and 80 PLUS Platinum efficiency into a small form factor build. It is ATX 3.1 certified with PCIe 5.1 support, uses 105 C Japanese capacitors and runs continuously at 50 C. It carries a 7 year limited warranty.
Key Features
- 850 W output, 80 PLUS Platinum
- SFX form factor for small builds
- ATX 3.1, PCIe 5.1 support
- Fully modular, Type-5 Micro-Fit connectors
- 92 mm PWM fan with Zero RPM mode
- 7 year limited warranty listed
Product Information
Manufacturer Part Number: CP-9020256-NA
Brand: Corsair
Manufacturer: Corsair
Series: SF
Model: RPS0175
Product Type: Power Supply
Color Category: Black
Color Family: Black
Network and Communication
Features: Low Noise
Power
Output Voltage: 12 V, 3.3 V, 5 V, 5 V SB
Input Voltage: 120 V, 230 V
Power Provided: 850 watt
Output Current: 20 ampere, 3 ampere, 70.80 ampere
Technical Information
NVIDIA SLI Supported: Yes
Specification Compliance: ATX12V v3.1
MTBF: 100000 hour
Physical Characteristics
Form Factor: Internal, SFX
Dimensions and Weight
Height: 2.5 inch
Width: 4.9 inch
Depth: 3.9 inch
Certifications and Listing
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Environmental Certification: 80 Plus Platinum
Warranty
Limited Warranty: 7 Year
Not sure this power supply fits your system? Send us your server, workstation or PC model and current PSU details, and the DatorPro team will confirm wattage, connectors and fit before you order.
