Product Information

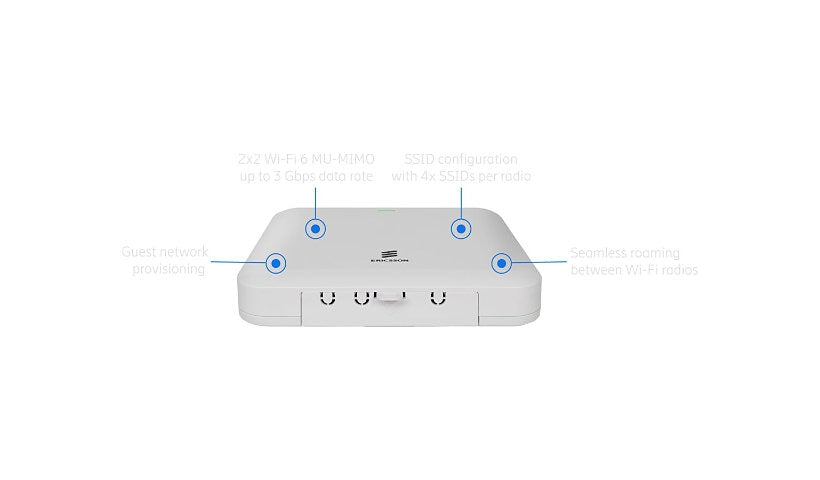

This Ericsson Cradlepoint bundle pairs the AP2600 Wi-Fi 6 LAN access point with a 5 year NetCloud Service Essentials plan, for small and medium fixed sites that need more Wi-Fi and IoT coverage. The AP2600 offers 2x2 MU-MIMO, Gigabit PoE+ WAN and Gigabit LAN ports, Bluetooth 5.1 LE and Zigbee.
Key Features
- Wi-Fi 6 dual band, 2x2 MU-MIMO
- 5 year NetCloud Essentials plan
- Gigabit PoE+ WAN + Gigabit LAN
- Bluetooth 5.1 LE, Zigbee
- 3 antennas
- Power adapter not included
Product Information
Brand: Ericsson
Manufacturer: CradlePoint
Product Line: Cradlepoint
Model: AP2600
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Country: North America (US and Canada)
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Capacity: ESSIDs per radio: 16
Network Band: 2.4 GHz, 5 GHz
Network Device: Channel width: 20 / 40 / 80 / 160 MHz, Maximum data rate (2.4 GHz): 574 Mbps, Maximum data rate (5 GHz): 2.4 Gbps
IoT Communications Technology: Bluetooth 5.1 LE, Zigbee
Internet of Things (IoT) Compatible: Yes
Antennas: 3
Antenna Form Factor: Internal
Features: 2x2 MU-MIMO technology, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), Auto-uplink (auto MDI/MDI-X), Reset button, Security slot (Kensington security lock compatible)
Bundled Services: 5 years Ericsson NetCloud Service Essentials Plan
Connectivity
Interface Provided: 1 x 10/100/1000Base-T - RJ-45, 1 x 10/100/1000Base-T (PoE+) - RJ-45 (WAN)
Power Over Ethernet (PoE): PoE+
Power
Device Type: External power adapter / power injector (not included)
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: External
Status Indicators: Cloud, Power, Uplink
Dimensions and Weight
Height: 1.6 inch
Width: 6.7 inch
Depth: 7.3 inch
Weight: 22.22 ounce
Certifications and Listing
Compliant Standards: cUL, FCC, IC, IEC 61000-4-2, IP55, LVD, RCM, UKCA, UL
Compliant Standards: IEEE 802.3at
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
