Product Information

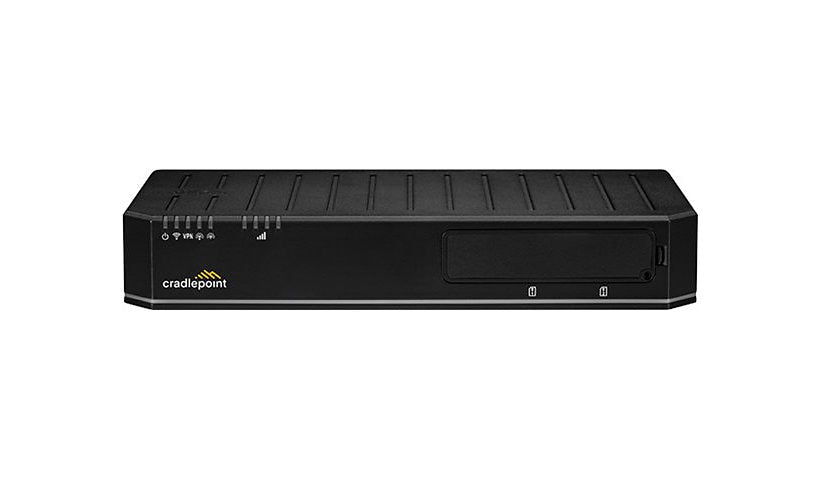

Cradlepoint's E300-5GB is an all-in-one branch router combining 5G cellular, Wi-Fi 6, five Gigabit ports and a 10Gb SFP+ port, sold with a 5 year NetCloud Branch Essentials Plan. It delivers 940 Mbps firewall and IPS throughput. Quick specs mention PCI compliance, FirstNet ready and private LTE support.
Key Features
- 5 years NetCloud Branch Essentials Plan
- 5G NR and LTE Advanced Pro, 2 x SIM
- Wi-Fi 6 dual band, up to 1200 Mbps on 5 GHz
- 5 x GbE RJ-45 plus 1 x 10Gb SFP+, USB 2.0
- 940 Mbps firewall and IPS, 400 Mbps VPN
- Desktop or wall mount, 4 antennas included
Product Information
Product Type #2: Wireless cellular modem
Brand: CradlePoint
Manufacturer: CradlePoint
Product Line: Cradlepoint E300 Series Enterprise Router
Model: E300-5GB
Product Type: Wireless router
Product Type: Wireless cellular modem
Packaged Quantity: 1
Color Category: Black
Country: Canada, North America
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: 10 Gigabit Ethernet, 802.11ax, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Bridge & Router: IPS throughput: 940 Mbps, Maximum throughput (2.4 GHz): 574 Mbps, Maximum throughput (5 GHz): 1200 Mbps, Stateful firewall throughput: 940 Mbps, VPN throughput (IPSec): 400 Mbps
Encryption: WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
Modem Transmission Data Rate: 4.14 GBps
Line Coding Format: 256 QAM
Capacity: Concurrent TCP sessions: 130000, Concurrent VPN tunnels: 20, Typical client count: 50
Wireless LAN: 802.11a/b/g/n/ac/ax
Broadband Transmission Technology: 2.4 GHz / 5 GHz
Cellular Data Connectivity Technology: 5G NR, HSPA+, LTE Advanced Pro, UMTS, WCDMA
Antennas: 4
Antenna Form Factor: External detachable
Key Features: USB port, VPN support
Features: 2x2 MU-MIMO technology, 4x4 MIMO technology, DFS support, Dual band, Passive GNSS, Short Message Service (SMS)
Bundled Services: 5 years NetCloud Branch Essentials Plan
Connectivity
Interface Provided: Antenna: 4 x SMA, USB 2.0: 1 x 4 pin USB Type A, WAN / LAN: 1 x 10Gb Ethernet - SFP+, WAN / LAN: 5 x 1Gb Ethernet - RJ-45
Expansion Slots: 1 expansion slot, 2 (total) / 2 (free) x Mini-SIM
Power
Device Type: External power adapter
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 10 - 90%
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Wall-mountable
Status Indicators: Modem, Port status, Power, Signal strength, VPN, Wi-Fi
Dimensions and Weight
Height: 1.7 inch
Width: 10.6 inch
Depth: 5.3 inch
Weight: 30.33 ounce
Included Items
Included Accessories: 4 x cellular antennas, Antenna alignment dongle, Rubber feet, Wall mounting kit
Certifications and Listing
Compliant Standards: IEEE 802.11k, IEEE 802.11v
Warranty
Service Activation: No
