Product Information

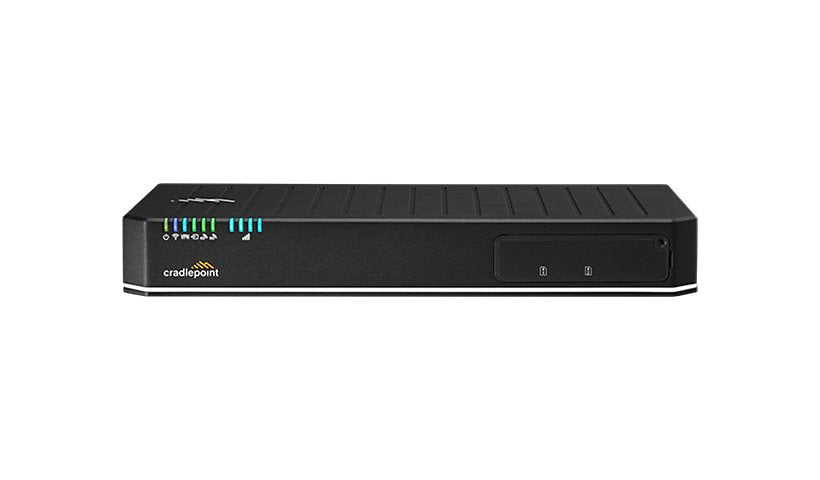

This Cradlepoint E3000-5GB enterprise branch router includes a 5 year NetCloud Enterprise Branch Essentials and Advanced Plans bundle. It offers 5G and LTE Advanced Pro, Wi-Fi 6, a 10Gb SFP/SFP+ port, PoE++ ports with 140 W budget, SD-WAN and private network mode, with 2 Gbps firewall throughput.
Key Features
- 5 years NetCloud Enterprise Branch Essentials and Advanced
- 5G NR and LTE Advanced Pro, 2 x SIM
- Wi-Fi 6, up to 2400 Mbps on 5 GHz
- 10Gb SFP/SFP+, 2.5GbE and GbE PoE++, 6 GbE
- 2 Gbps firewall, 1.5 Gbps IPS, SD-WAN
- Rack and wall mount kits, GPS
Product Information
Product Type #2: Wireless cellular modem
Brand: CradlePoint
Manufacturer: CradlePoint
Product Line: Cradlepoint E3000 Series
Model: E3000-5GB
Product Type: Wireless router
Product Type: Wireless cellular modem
Packaged Quantity: 1
Color Category: Black
Country: North America
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Bridge & Router: Analytic sustained rate: 1.5 Gbps, IPS throughput: 1.5 Gbps, Maximum data rate (2.4 GHz): 1148 Mbps, Maximum data rate (5 GHz): 2400 Mbps, PoE power budget: 140 W, PoE power per port: 90 W, Stateful firewall throughput: 2 Gbps, VPN throughput (IPSec): 400 Mbps
Encryption: WPA, WPA2-Enterprise, WPA2-Personal, WPA3-Enhanced Open, WPA3-Enterprise, WPA3-Personal
Modem Transmission Data Rate: 4.14 GBps
Line Coding Format: 256 QAM
Capacity: Concurrent TCP sessions: 130000, Concurrent VPN tunnels: 20, Recommended number of clients: 100
Wireless LAN: 802.11a/b/g/n/ac/ax
Broadband Transmission Technology: 2.4 GHz / 5 GHz
Cellular Data Connectivity Technology: 5G NR, FDD LTE, HSPA+, LTE Advanced Pro, TDD LTE, UMTS, WCDMA
Antennas: 8
Antenna Form Factor: External detachable
Key Features: Firewall, USB port, VPN support
Features: 4x4 MU-MIMO technology, Dynamic Frequency Selection (DFS), Intrusion Prevention System (IPS), Private Network Mode, Reset button, SD-WAN support, SISO technology, Virtual Route Redundancy Protocol (VRRP) support
Bundled Services: 5 years NetCloud Enterprise Branch Essentials and Advanced Plans
Connectivity
Interface Provided: Antenna: 1 x SMA - GPS, Antenna: 4 x RP-SMA - Wi-Fi, Antenna: 4 x SMA, Console: 1 x RJ-45, Extensibility port: 1 x SFP/SFP+, USB 2.0: 1 x 4 pin USB Type A, WAN / LAN: 1 x 10Gb Ethernet - SFP/SFP+, WAN / LAN: 1 x 2.5GBase-T (PoE++) - RJ-45, WAN / LAN: 3 x 10Base-T/100Base-TX/1000Base-T (PoE++) - RJ-45, WAN / LAN: 6 x 10Base-T/100Base-TX/1000Base-T - RJ-45
Expansion Slots: 1 expansion slot, 2 SIM
WAN Ports Quantity: 11
Power
Device Type: External power adapter
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 90%
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Rack-mountable, Wall-mountable
Mounting Kit: Included
Built-in Devices: GLONASS, GPS
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 12.6 inch
Depth: 6.3 inch
Weight: 4.37 lbs
Certifications and Listing
Compliant Standards #2: CB, cUL, EN 62368-1, FCC, GCF, IC, PTCRB, RCM, REACH, RoHS, UL, WEEE
Compliant Standards: IEEE 802.11ax, IEEE 802.11k, IEEE 802.11r, IEEE 802.11v, IEEE 802.3bt Type 3, IEEE 802.3bt Type 4
Compliant Standards: CB, cUL, EN 62368-1, FCC, GCF, IC, PTCRB, RCM, REACH, RoHS, UL, WEEE
Warranty
Service Activation: No
