Product Information

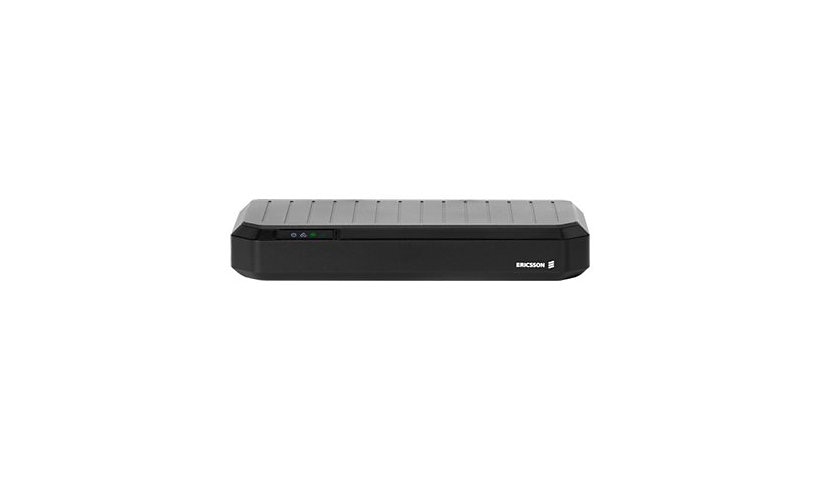

The Ericsson Cradlepoint E400-5GE-AM is a routing and security appliance for fixed sites with standalone 5G, tri band Wi-Fi 7 and five 2.5GbE ports. It supports eSIM, dual Nano-SIM and up to 250 VLANs, with 1.9 Gbps firewall throughput. It includes 1 year of NetCloud Enterprise Branch Essentials.
Key Features
- 5G FR1 Sub-6 GHz, LTE Cat 20, eSIM
- Wi-Fi 7 tri band (2.4/5/6 GHz)
- 5 x 2.5GbE WAN/LAN ports, USB 2.0
- 1.9 Gbps firewall, 300 Mbps IPSec VPN
- Secure boot, Kensington slot, 8 antennas
- 1 year NetCloud Enterprise Branch Essentials
Product Information
Product Type #2: Wireless cellular modem
Brand: Ericsson
Manufacturer: CradlePoint
Product Line: Ericsson Cradlepoint
Model: E400-5GE-AM
Product Type: Wireless router
Product Type: Wireless cellular modem
Packaged Quantity: 1
Color Category: Black
Country: North America
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: 2.5 Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n
Bridge & Router: Maximum throughput (2.4 GHz): 688 Mbps, Maximum throughput (5 GHz): 2882 Mbps, Maximum throughput (6 GHz): 5764 Mbps, Stateful firewall throughput: 1.9 Gbps, VPN throughput (IPSec): 300 Mbps
Encryption: WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
Modem Transmission Data Rate: 4.67 GBps
Line Coding Format: 256 QAM
Capacity: Concurrent TCP sessions: 130000, Concurrent VPN tunnels: 20, Typical client count: 50, VLANs supported: up to 250
Wireless LAN: 802.11a/b/g/n/ac/ax/be
Broadband Transmission Technology: 2.4 GHz / 5 GHz / 6 GHz
Cellular Data Connectivity Technology: 5G FR1, 5G Sub-6 Ghz, LTE Advanced Pro, LTE CAT20
Antennas: 8
Antenna Form Factor: External and internal
Key Features: USB port, VPN support
Features: 2x2 MU-MIMO technology, 3GPP Release 17, 4x4 MIMO technology, DFS support, eSIM support, Passive GNSS, Secure Boot, Security slot (Kensington security lock compatible), Short Message Service (SMS), Tri-Band
Bundled Services: 1 year NetCloud Enterprise Branch Essentials Plan
Connectivity
Interface Provided: Antenna: 4 x SMA, USB 2.0: 1 x 4 pin USB Type A, WAN / LAN: 5 x 2.5G Gigabit Ethernet - RJ-45
Expansion Slots: 1 (total) / 1 (free) x expansion slot, 2 (total) / 2 (free) x Nano-SIM
Power
Device Type: External power adapter
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 10 - 90%
MTBF: 1,488,995 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Dimensions and Weight
Height: 2.1 inch
Width: 12.2 inch
Depth: 5.6 inch
Weight: 33.15 ounce
Included Items
Included Accessories: 2 screws, 4 x cellular antennas
Cables: 1 x network cable - 5 ft
Certifications and Listing
Compliant Standards: IEEE 802.11k, IEEE 802.11v
Warranty
Service Activation: No
