Product Information

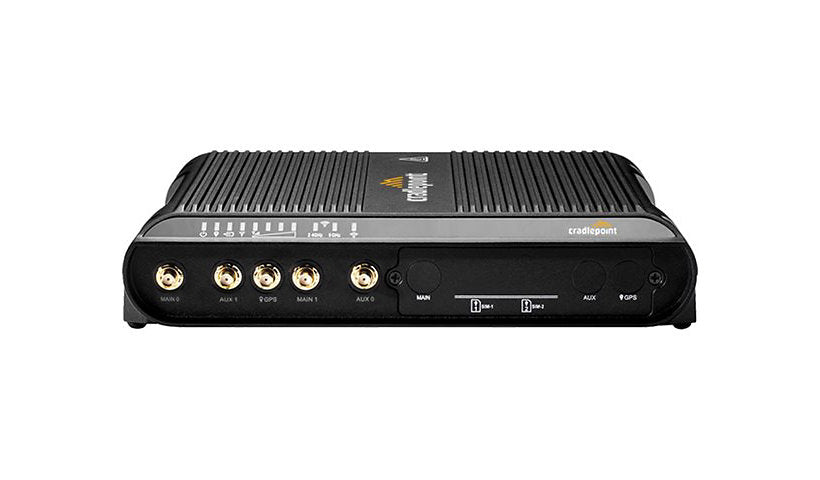

This Cradlepoint IBR1700-1200M-B is a Gigabit class LTE ruggedized router for persistent in-vehicle connectivity, supplied with a 3 year NetCloud Mobile Essentials Plan. It offers Wi-Fi 5 Wave 2, a four port Gigabit LAN switch, RS-232, GPIO and GNSS, with ignition sense and 940 Mbps firewall throughput.
Key Features
- 3 years NetCloud Mobile Essentials Plan
- LTE Advanced Pro up to 1.2 Gbps
- Wi-Fi 5 Wave 2 dual band, 4x4 MU-MIMO
- 1 x GbE WAN, 4 x GbE LAN, USB 2.0
- 940 Mbps firewall, 10 VPN tunnels, 30 clients
- Reverse polarity and transient voltage protection
Product Information
Product Type #2: Wireless cellular modem
Brand: CradlePoint
Manufacturer: CradlePoint
Product Line: Cradlepoint IBR1700 Series
Model: IBR1700-1200M-B
Product Type: Wireless router
Product Type: Wireless cellular modem
Packaged Quantity: 1
Color Category: Black
Country: North America (US and Canada)
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Bridge & Router: Stateful firewall throughput: 940 Mbps, VPN throughput (IPSec): 20 Mbps
Encryption: WEP, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
Modem Transmission Data Rate: 1.2 GBps
Line Coding Format: 256 QAM
Capacity: Concurrent TCP sessions: 32000, Concurrent VPN tunnels: 10, Typical client count: 30
Integrated Switch: 4-port switch
Wireless LAN: 802.11a/b/g/n/ac Wave 2
Broadband Transmission Technology: 2.4 GHz / 5 GHz
Cellular Data Connectivity Technology: DC-HSPA+, LTE Advanced Pro, WCDMA
Antenna Form Factor: External detachable
Key Features: Firewall, USB port, VPN support
Features: 2x2 MU-MIMO technology, 3GPP Release 12, 4x4 MU-MIMO technology, Firewall protection, Ignition Sense, Reverse polarity protection, Transient voltage protection
Bundled Services: 3 years NetCloud Mobile Essentials Plan
Connectivity
Interface Provided: Antenna: 1 x SMA - GPS, Antenna: 4 x SMA - LTE, Antenna: 6 x RP-SMA - Wi-Fi, Console: 1 x RS-232 - 9 pin D-Sub (DB-9), LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45, Peripheral: 1 x GPIO, USB 2.0: 1 x 4 pin USB Type A, WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45
Expansion Slots: 2 Mini-SIM
WAN Ports Quantity: 1
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 5 - 95%
MTBF: 286,853 Hours
Physical Characteristics
Form Factor (Hubs & Switches): In-vehicle
Status Indicators: GPS, Modem, Power, Signal strength, WAN, Wi-Fi
Built-in Devices: Beidou, Galileo, GLONASS, GPS
Dimensions and Weight
Height: 1.7 inch
Width: 8.8 inch
Depth: 7.5 inch
Weight: 3.75 lbs
Included Items
Cables: 1 x GPIO cable - 10 ft
Certifications and Listing
Compliant Standards: Wi-Fi CERTIFIED
Warranty
Service Activation: No
