Product Information

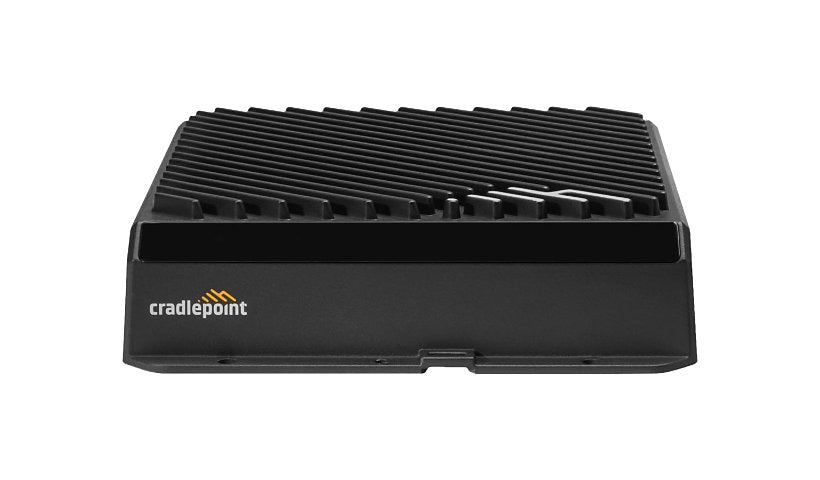

This Cradlepoint R1900-5GB (CP-UNR1900E5Y) is a TAA compliant 5G router with Wi-Fi 6, Bluetooth 5.1 and four Gigabit ports, supplied with a 5 year NetCloud Mobile Performance Essentials Plan. It runs on 9 to 36 V DC at 19 W and delivers 940 Mbps firewall and IPS throughput.
Key Features
- 5 years NetCloud Mobile Performance Essentials Plan
- 5G NR cellular
- Wi-Fi 6 dual band, Bluetooth 5.1
- 4 x GbE WAN/LAN, RS-232, GPIO, USB 2.0
- 940 Mbps firewall and IPS, 400 Mbps VPN
- 9 to 36 V DC, TAA compliant
Product Information
Product Type #2: Wireless cellular modem
Brand: CradlePoint
Manufacturer: CradlePoint
Product Line: Cradlepoint R1900 Series
Model: R1900-5GB
Product Type: Wireless router
Product Type: Wireless cellular modem
Packaged Quantity: 1
Color Category: Black
Country: Global
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Bluetooth 5.1, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: IPSec
Bridge & Router: Firewall throughput: 940 Mbps, IPS throughput: 940 Mbps, Maximum data rate (2.4 GHz): 574 Mbps, Maximum data rate (5 GHz): 1200 Mbps, VPN throughput (IPSec): 400 Mbps
Modem Transmission Data Rate: 4.14 GBps
Capacity: Concurrent TCP sessions: 32000, Concurrent VPN tunnels: 20
Integrated Switch: 4-port switch
Wireless LAN: 802.11a/b/g/n/ac/ax, Bluetooth 5.1, LTE
Broadband Transmission Technology: 2.4 GHz / 5 GHz
Cellular Data Connectivity Technology: 5G NR, HSPA+, UMTS, WCDMA
Key Features: Firewall, USB port, VPN support
Features: 2x2 MU-MIMO technology, 4x4 MIMO technology, Application Aware Routing (AAR), Cloud managed, DFS support, Intrusion Detection System (IDS), Intrusion Prevention System (IPS), Metal housing, VPN support
Bundled Services: 5 years NetCloud Mobile Performance Essentials Plan
Connectivity
Interface Provided: Antenna: 3 x RP-SMA, Antenna: 5 x SMA, Peripheral: 1 x GPIO, Serial: 1 x RS-232, USB 2.0: 1 x 4 pin USB Type A, WAN / LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45
Power
Required Voltage: DC 9 - 36 volt
Power Consumption Operational: 19 watt
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: 4G, 5G, GPS, Link/activity, Power, Signal strength, Wi-Fi
Dimensions and Weight
Height: 1.6 inch
Width: 5.8 inch
Depth: 6.8 inch
Weight: 34.56 ounce
Included Items
Cables: 1 x GPIO / power cable - 10 ft
Certifications and Listing
Compliant Standards #2: CB, cUL, EN 60950-1, EN 62368, GCF, IP64, MIL-STD 810G, PTCRB, REACH, RoHS, SAE J1455, UL, WEEE
Compliant Standards: IEEE 802.11k, IEEE 802.11v
Compliant Standards: CB, cUL, EN 60950-1, EN 62368, GCF, IP64, MIL-STD 810G, PTCRB, REACH, RoHS, SAE J1455, UL, WEEE
TAA Compliant: Yes
Warranty
Service Activation: No
