Product Information

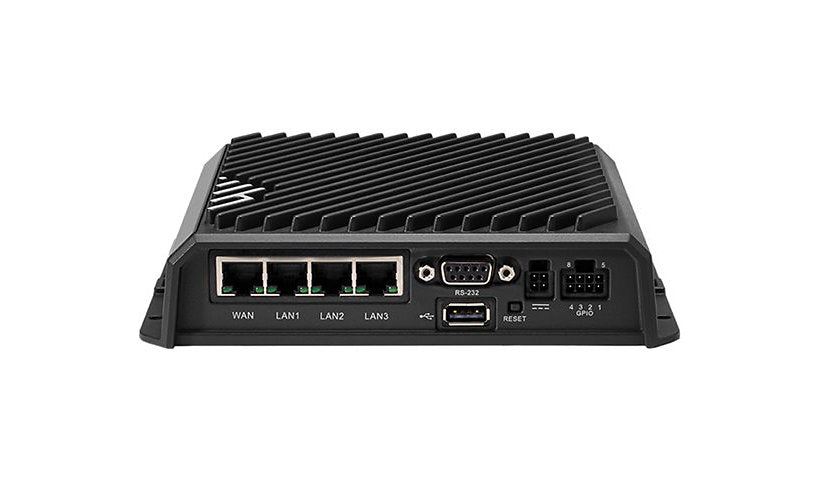

This Cradlepoint R1900-5GB bundle is a ruggedized 5G router for in-vehicle networks, supplied with a 6 year NetCloud Mobile Performance Essentials Plan. It combines 5G with Wi-Fi 6, Bluetooth 5.1, four Gigabit ports, RS-232 and GPIO, with 940 Mbps firewall and IPS throughput.
Key Features
- 6 years NetCloud Mobile Performance Essentials Plan
- 5G NR cellular, 2 x Nano SIM
- Wi-Fi 6 dual band, Bluetooth 5.1, GNSS and GPS
- 4 x GbE WAN/LAN, RS-232, GPIO, USB 2.0
- 940 Mbps firewall and IPS, 400 Mbps IPsec VPN
- Metal housing, IDS/IPS, 10 ft GPIO/power cable
Product Information
Product Type #2: Wireless cellular modem
Brand: CradlePoint
Manufacturer: CradlePoint
Product Line: Cradlepoint
Model: R1900-5GB
Product Type: Wireless router
Product Type: Wireless cellular modem
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Bluetooth 5.1, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: IPSec
Bridge & Router: Firewall throughput: 940 Mbps, IPS throughput: 940 Mbps, Maximum data rate (2.4 GHz): 574 Mbps, Maximum data rate (5 GHz): 1200 Mbps, VPN throughput (IPSec): 400 Mbps
Encryption: WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
Modem Transmission Data Rate: 4.14 GBps
Line Coding Format: 256 QAM
Capacity: Concurrent TCP sessions: 32000, Concurrent VPN tunnels: 20
Integrated Switch: 4-port switch
Wireless LAN: 802.11a/b/g/n/ac/ax, Bluetooth 5.1, LTE
Broadband Transmission Technology: 2.4 GHz / 5 GHz
Cellular Data Connectivity Technology: 5G NR, HSPA+, UMTS, WCDMA
Key Features: Firewall, USB port, VPN support
Features: 2x2 MU-MIMO technology, 4x4 MIMO technology, Application Aware Routing (AAR), Cloud managed, DFS support, Intrusion Detection System (IDS), Intrusion Prevention System (IPS), Metal housing, VPN support
Bundled Services: 6 years NetCloud Mobile Performance Essentials Plan
Connectivity
Interface Provided: Antenna: 3 x RP-SMA, Antenna: 5 x SMA, Peripheral: 1 x GPIO, Serial: 1 x RS-232, USB 2.0: 1 x 4 pin USB Type A, WAN / LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45
Expansion Slots: 2 (total) / 2 (free) x Nano-SIM
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 10 - 90%
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: 4G, 5G, GPS, Link/activity, Power, Signal strength, Wi-Fi
Built-in Devices: GNSS receiver, GPS, LED panel
Dimensions and Weight
Height: 1.6 inch
Width: 5.8 inch
Depth: 6.8 inch
Weight: 34.56 ounce
Included Items
Cables: 1 x GPIO / power cable - 10 ft
Certifications and Listing
Compliant Standards: IEEE 802.11k, IEEE 802.11v
Warranty
Service Activation: No
