Product Information

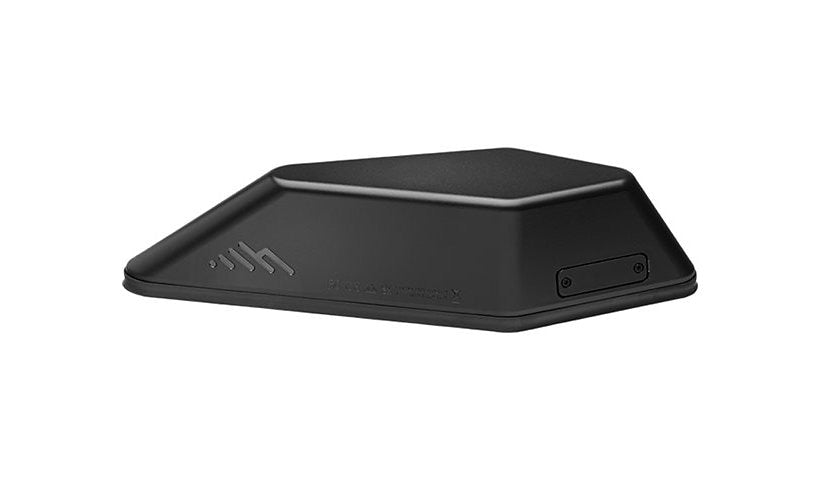

The Cradlepoint R2105 is a ruggedized, exterior mounted 5G router for vehicle and IoT deployments, sold with a 3 year NetCloud Mobile Performance Essentials Plan. It brings 5G with LTE Cat 20, Wi-Fi 6 and a 2.5GbE connection, runs on 9 to 36 V DC with ignition sense, and provides 900 Mbps firewall throughput.
Key Features
- 3 years NetCloud Mobile Performance Essentials Plan
- 5G NR and LTE Cat 20, up to 4.14 Gbps
- Wi-Fi 6 dual band
- 2.5 Gigabit Ethernet, PoE powered
- 900 Mbps firewall, 650 Mbps IPS, 300 Mbps VPN
- 9 to 36 V DC, 14.5 W, ignition sense
Product Information
Product Type #2: Wireless cellular modem
Brand: CradlePoint
Manufacturer: CradlePoint
Product Line: Cradlepoint
Model: R2105
Product Type: Router
Product Type: Wireless cellular modem
Packaged Quantity: 1
Color Category: Black
Country: Worldwide
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: 2.5 Gigabit Ethernet, 802.11ax, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Bridge & Router: Downlink bandwidth: 4.14 Gbps, IPS throughput: 650 Mbps, Stateful firewall throughput: 900 Mbps, Uplink bandwidth: 660 Mbps, VPN throughput (IPSec): 300 Mbps
Modem Transmission Data Rate: 4.14 GBps
Capacity: Concurrent TCP sessions: 32000, Concurrent VPN tunnels: 10, Typical client count: 100
Wireless LAN: 802.11a/b/g/n/ac/ax
Broadband Transmission Technology: 2.4 GHz / 5 GHz
Cellular Data Connectivity Technology: 5G NR, HSPA+, UMTS, WCDMA
IoT Communications Technology: LTE Cat 20
Key Features: Firewall, VPN support
Features: 4x4 MIMO technology, DFS support, Ignition Sense, Passive GNSS, PoE powered
Bundled Services: 3 years NetCloud Mobile Performance Essentials Plan
Connectivity
Expansion Slots: 2 (total) / 2 (free) x Nano-SIM
Power
Required Voltage: DC 9 - 36 volt
Power Consumption Operational: 14.5 watt
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Dimensions and Weight
Height: 3.2 inch
Width: 4.5 inch
Depth: 15.2 inch
Weight: 3.22 lbs
Included Items
Cables: 1 x network cable - 5.5 ft
Certifications and Listing
Compliant Standards #2: CB Scheme, CP65, E Mark, FCC, GCF, IC, IEC/EN 62368-1, IK09, IP67, MIL-STD 810G, RCM, REACH, RoHS, SAE J1455, WEEE
Compliant Standards: IEEE 802.3at
Compliant Standards: CB Scheme, CP65, E Mark, FCC, GCF, IC, IEC/EN 62368-1, IK09, IP67, MIL-STD 810G, RCM, REACH, RoHS, SAE J1455, WEEE
Warranty
Service Activation: No
