Product Information

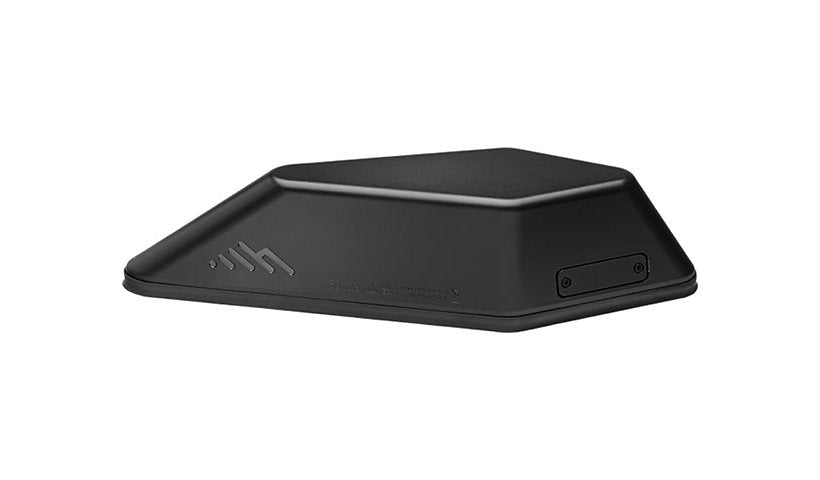

This Cradlepoint R2155 is a rugged 5G vehicle and IoT router with four internal antennas, a 2.5GbE LAN port and PoE Class 4, sold with a 3 year NetCloud Mobile Performance Essentials + Advanced Plan. It supports 5G NR and LTE Advanced Pro, ignition sense and up to 100 typical clients.
Key Features
- 3 years NetCloud Mobile Performance Essentials + Advanced
- 5G NR and LTE Advanced Pro, 2 x Nano SIM
- 1 x 2.5GbE LAN, PoE Class 4
- 900 Mbps firewall, 650 Mbps IPS, 300 Mbps VPN
- 4 internal antennas, passive GNSS, ignition sense
- Accessory kit, GPIO and network cables included
Product Information
Product Type #2: Wireless cellular modem
Brand: CradlePoint
Manufacturer: CradlePoint
Product Line: Cradlepoint R2100 Series
Model: R2155
Product Type: Router
Product Type: Wireless cellular modem
Packaged Quantity: 1
Color Category: Black
Country: Worldwide
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 2.5 Gigabit Ethernet
Bridge & Router: IPS throughput: 650 Mbps, Stateful firewall throughput: 900 Mbps, VPN throughput (IPSec): 300 Mbps
Modem Transmission Data Rate: 4.14 GBps
Line Coding Format: 256 QAM
Capacity: Concurrent TCP sessions: 32000, Concurrent VPN tunnels: 10, Typical client count: 100
Cellular Data Connectivity Technology: 5G NR, HSPA+, LTE Advanced Pro, UMTS, WCDMA
Antennas: 4
Antenna Form Factor: Internal
Key Features: Firewall, VPN support
Features: 4x4 MIMO technology, Ignition Sense, Passive GNSS, PoE Class 4, Short Message Service (SMS)
Bundled Services: 3 years NetCloud Mobile Performance Essentials + Advanced Plan
Connectivity
Interface Provided: LAN: 1 x 2.5GBase-T - RJ-45
Expansion Slots: 2 (total) / 2 (free) x Nano-SIM
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 5 - 95%
MTBF: 1,895,792 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: Status
Dimensions and Weight
Height: 3.2 inch
Width: 4.5 inch
Depth: 15.2 inch
Weight: 3.22 lbs
Included Items
Included Accessories: Accessory kit, Mounting template
Cables: 1 x GPIO cable - 10 ft, Network cable - 5.5 ft
Certifications and Listing
Compliant Standards: IEEE 802.3at
Warranty
Service Activation: No
