Product Information

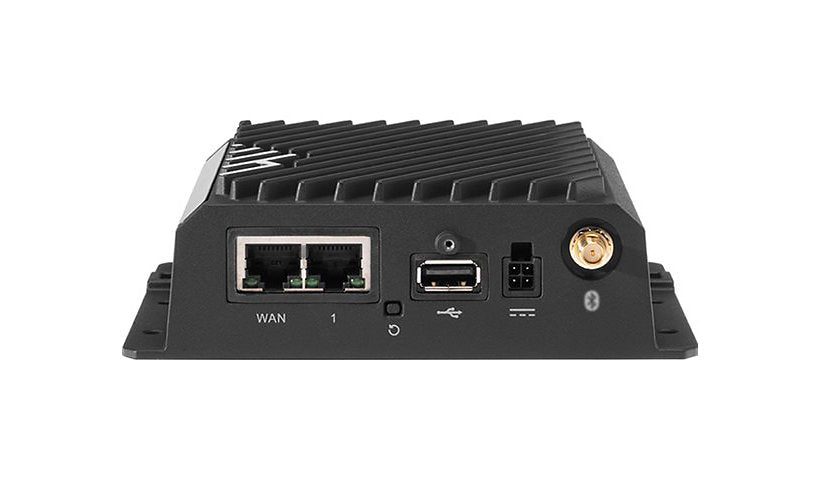

This Cradlepoint R920 is a versatile LTE Cat 7 router for vehicle and IoT deployments with Wi-Fi 6, Docker support and FIPS 140-3 Level 1 encryption. It comes with a 1 year NetCloud Mobile Essentials + Advanced Plan and provides 940 Mbps firewall throughput with up to 30 typical clients.
Key Features
- 1 year NetCloud Mobile Essentials + Advanced Plan
- LTE Cat 7, 2 x Nano SIM
- Wi-Fi 6 dual band
- GbE WAN and LAN, USB 2.0, GPIO
- 940 Mbps firewall and IPS, 100 Mbps VPN
- FIPS 140-3, 8 GB eMMC, Docker, GNSS
Product Information
Product Type #2: Wireless cellular modem
Brand: CradlePoint
Manufacturer: CradlePoint
Product Line: Cradlepoint
Model: R920
Product Type: Wireless router
Product Type: Wireless cellular modem
Packaged Quantity: 1
Color Category: Black
Country: North America
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: 802.11ax, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Bridge & Router: IPS throughput: 940 Mbps, LTE downlink bandwidth: 300 Mbps, LTE uplink bandwidth: 150 Mbps, Maximum data rate (2.4 GHz): 574 Mbps, Maximum data rate (5 GHz): 1.2 Gbps, Stateful firewall throughput: 940 Mbps, VPN throughput (IPSec): 100 Mbps
Encryption: FIPS 140-3 Level 1, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
Modem Transmission Data Rate: 300 MBps
Line Coding Format: 64 QAM
Capacity: Concurrent TCP sessions: 130000, Concurrent VPN tunnels: 20, Typical client count: 30
Wireless LAN: 802.11a/b/g/n/ac/ax
Broadband Transmission Technology: 2.4 GHz / 5 GHz
Cellular Data Connectivity Technology: HSPA+, LTE, UMTS, WCDMA
IoT Communications Technology: LTE Cat 7
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: External detachable
Key Features: Firewall, USB port, VPN support
Features: 2x2 MIMO technology, 3GPP Release 11, Access Point operational mode, Docker Support, Dual core CPU, GPS/GLONASS/Galileo/BeiDou/QZSS support, SMS remote control, Wireless Client Mode
Bundled Services: 1 year NetCloud Mobile Essentials + Advanced Plan
Connectivity
Interface Provided: 1 x GPIO - 2 pin, Antenna: 1 x RP-SMA - Bluetooth, Antenna: 1 x SMA - GNSS antenna, Antenna: 2 x RP-SMA - Wi-Fi, LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45, USB 2.0: 1 x 4 pin USB Type A, WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45
Expansion Slots: 2 (total) / 2 (free) x Nano-SIM
WAN Ports Quantity: 1
Power
Device Type: External power adapter
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 10 - 90%
MTBF: 388,022 hour(s)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Built-in Devices: 8GB eMMC, GNSS receiver
Dimensions and Weight
Height: 1.6 inch
Width: 5.3 inch
Depth: 4.8 inch
Weight: 20.99 ounce
Certifications and Listing
Compliant Standards #2: C1D2, CB Scheme, cUL, E Mark, EN 62368-1, FCC, IC, IEC/EN 61373 Category 1 Class B, IP64, MIL-STD 810G 514.6, PTCRB, RoHS, RoHS 2, SAE J1455, UL, WEEE
Compliant Standards: IEEE 802.11k, IEEE 802.11v
Compliant Standards: C1D2, CB Scheme, cUL, E Mark, EN 62368-1, FCC, IC, IEC/EN 61373 Category 1 Class B, IP64, MIL-STD 810G 514.6, PTCRB, RoHS, RoHS 2, SAE J1455, UL, WEEE
Warranty
Service Activation: No
