Product Information

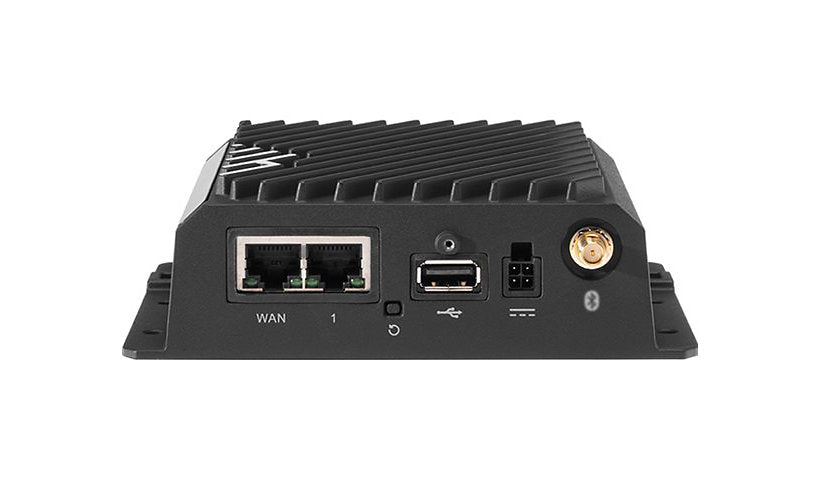

This Cradlepoint R920 is a ruggedized LTE Cat 7 router for vehicles and IoT, bundled with a 5 year NetCloud Ruggedized IoT Essentials + Advanced Plan. It provides Wi-Fi 6, Bluetooth LE, Docker, ignition sense and GNSS, with 940 Mbps firewall and IPS throughput.
Key Features
- 5 years NetCloud Ruggedized IoT Essentials + Advanced
- LTE Cat 7, 2 x Nano SIM
- Wi-Fi 6 dual band, Bluetooth LE
- GbE WAN and LAN, USB 2.0, GPIO
- 940 Mbps firewall and IPS, 100 Mbps VPN
- 8 GB flash, Docker, antennas included
Product Information
Product Type #2: Wireless cellular modem
Brand: CradlePoint
Manufacturer: CradlePoint
Product Line: Cradlepoint
Model: R920
Product Type: Wireless router
Product Type: Wireless cellular modem
Packaged Quantity: 1
Color Category: Black
Country: North America (US and Canada)
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Bridge & Router: IPS throughput: 940 Mbps, LTE downlink bandwidth: 300 Mbps, LTE uplink bandwidth: 150 Mbps, Maximum data rate (2.4 GHz): 574 Mbps, Maximum data rate (5 GHz): 1.2 Gbps, Stateful firewall throughput: 940 Mbps, VPN throughput (IPSec): 100 Mbps
Encryption: WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
Modem Transmission Data Rate: 300 MBps
Line Coding Format: 64 QAM
Capacity: Concurrent TCP sessions: 130000, Concurrent VPN tunnels: 20, Typical client count: 30
Wireless LAN: 802.11a/b/g/n/ac/ax
Broadband Transmission Technology: 2.4 GHz / 5 GHz
Cellular Data Connectivity Technology: FDD LTE, HSPA+, TDD LTE, UMTS, WCDMA
IoT Communications Technology: Bluetooth Low Energy (LE), LTE Cat 7
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: External detachable
Key Features: Firewall, USB port, VPN support
Features: 2x2 MIMO technology, 3GPP Release 11, Access Point operational mode, DFS support, Docker Support, Dual core CPU, GPS/GLONASS/Galileo/BeiDou/QZSS support, Ignition Sense, SMS remote control, Wireless Client Mode
Connectivity
Interface Provided: 1 x GPIO - 2 pin, Antenna: 1 x RP-SMA - Bluetooth, Antenna: 1 x SMA - GNSS antenna, Antenna: 2 x RP-SMA - LTE, Antenna: 2 x RP-SMA - Wi-Fi, LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45, USB 2.0: 1 x 4 pin USB Type A, WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45
Expansion Slots: 2 (total) / 2 (free) x Nano-SIM
WAN Ports Quantity: 1
Power
Device Type: External power adapter
Memory and Processor
Flash Memory Installed: 8 GB
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 10 - 90%
MTBF: 388,022 hour(s)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Built-in Devices: GNSS receiver
Dimensions and Weight
Height: 1.6 inch
Width: 5.3 inch
Depth: 4.8 inch
Weight: 20.99 ounce
Included Items
Included Accessories: 2 x cellular antennas, 2 x Wi-Fi antennas
Certifications and Listing
Compliant Standards: IEEE 802.11k, IEEE 802.11v, Wi-Fi CERTIFIED
Warranty
Service Activation: No
