Product Information

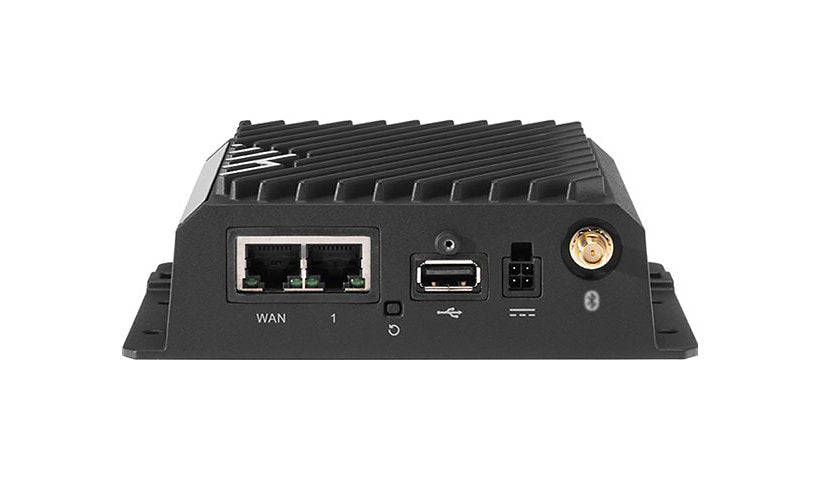

The Cradlepoint R920-C7A here is bundled with a 5 year NetCloud IoT Essentials Plan. This ruggedized LTE Cat 7 router supports Wi-Fi 6, Bluetooth LE, Docker, ignition sense and GNSS for vehicles and IoT, and delivers 940 Mbps firewall and IPS throughput.
Key Features
- 5 years NetCloud IoT Essentials Plan
- LTE Cat 7, up to 300 Mbps downlink
- Wi-Fi 6 dual band, Bluetooth LE
- 1 x GbE WAN, 1 x GbE LAN, USB, GPIO
- 940 Mbps firewall, 130,000 TCP sessions
- Cellular and Wi-Fi antennas included
Product Information
Product Type #2: Wireless cellular modem
Brand: CradlePoint
Manufacturer: CradlePoint
Product Line: Cradlepoint
Model: R920
Product Type: Wireless router
Product Type: Wireless cellular modem
Packaged Quantity: 1
Color Category: Black
Country: North America (US and Canada)
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Bridge & Router: IPS throughput: 940 Mbps, LTE downlink bandwidth: 300 Mbps, LTE uplink bandwidth: 150 Mbps, Maximum data rate (2.4 GHz): 574 Mbps, Maximum data rate (5 GHz): 1.2 Gbps, Stateful firewall throughput: 940 Mbps, VPN throughput (IPSec): 100 Mbps
Encryption: WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
Modem Transmission Data Rate: 300 MBps
Line Coding Format: 64 QAM
Capacity: Concurrent TCP sessions: 130000, Concurrent VPN tunnels: 20, Typical client count: 30
Wireless LAN: 802.11a/b/g/n/ac/ax
Broadband Transmission Technology: 2.4 GHz / 5 GHz
Cellular Data Connectivity Technology: FDD LTE, HSPA+, TDD LTE, UMTS, WCDMA
IoT Communications Technology: Bluetooth Low Energy (LE), LTE Cat 7
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: External detachable
Key Features: Firewall, USB port, VPN support
Features: 2x2 MIMO technology, 3GPP Release 11, Access Point operational mode, DFS support, Docker Support, Dual core CPU, GPS/GLONASS/Galileo/BeiDou/QZSS support, Ignition Sense, SMS remote control, Wireless Client Mode
Connectivity
Interface Provided: 1 x GPIO - 2 pin, Antenna: 1 x RP-SMA - Bluetooth, Antenna: 1 x SMA - GNSS antenna, Antenna: 2 x RP-SMA - LTE, Antenna: 2 x RP-SMA - Wi-Fi, LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45, USB 2.0: 1 x 4 pin USB Type A, WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45
Expansion Slots: 2 (total) / 2 (free) x Nano-SIM
WAN Ports Quantity: 1
Power
Device Type: External power adapter
Memory and Processor
Flash Memory Installed: 8 GB
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 10 - 90%
MTBF: 388,022 hour(s)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Built-in Devices: GNSS receiver
Dimensions and Weight
Height: 1.6 inch
Width: 5.3 inch
Depth: 4.8 inch
Weight: 20.99 ounce
Included Items
Included Accessories: 2 x cellular antennas, 2 x Wi-Fi antennas
Certifications and Listing
Compliant Standards: IEEE 802.11k, IEEE 802.11v, Wi-Fi CERTIFIED
Warranty
Service Activation: No
Not sure this router fits your home or office? Send us your internet type, coverage area and device count, and the DatorPro team will help you pick the right model before you order.
