Product Information

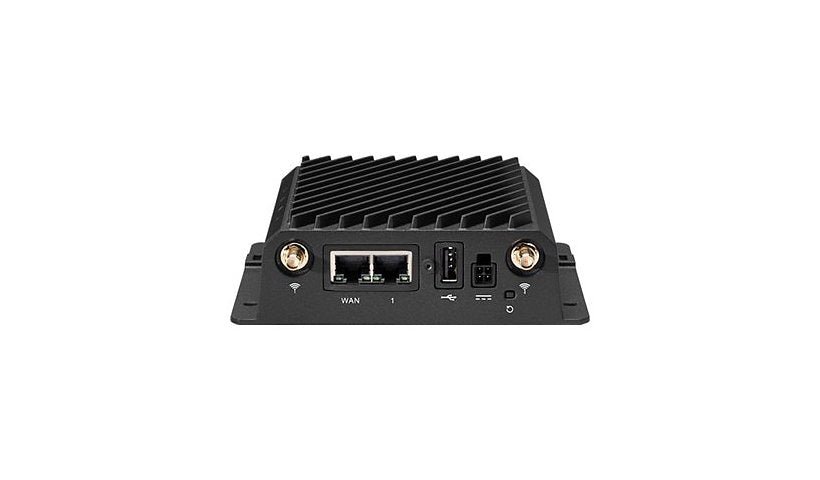

The Cradlepoint R980-5GD is a ruggedized 5G router that is network slicing ready and supports eSIM for carrier switching. It offers dual band Wi-Fi 6, two WAN ports, dual Nano-SIM, multi-constellation GNSS and Docker support, with up to 940 Mbps firewall throughput at just 11 W. Quick specs list a 5 year NetCloud Ruggedized IoT Essentials Plan.
Key Features
- 5G NR, LTE Advanced Pro, eSIM support
- Wi-Fi 6 dual band, 7 detachable antennas
- 2 WAN ports, dual Nano-SIM
- 940 Mbps firewall/IPS, 200 Mbps IPSec VPN
- GPS, GLONASS, Galileo, BeiDou, Docker support
- 11 W, 1.4 million hour MTBF, 5 year NetCloud plan
Product Information
Product Type #2: Wireless cellular modem
Brand: CradlePoint
Manufacturer: CradlePoint
Product Line: Cradlepoint R980
Model: R980-5GD
Product Type: Router
Product Type: Wireless cellular modem
Packaged Quantity: 1
Color Category: Black
Country: Australia, Canada, European Union, New Zealand, United Kingdom, United States
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Bridge & Router: IPS throughput: 940 Mbps, Maximum data rate (2.4 GHz): 574 Mbps, Maximum data rate (5 GHz): 1.2 Gbps, Stateful firewall throughput: 940 Mbps, VPN throughput (IPSec): 200 Mbps
Encryption: WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
Modem Transmission Data Rate: 3.4 GBps
Line Coding Format: 256 QAM
Capacity: Concurrent TCP sessions: 32000, Concurrent VPN tunnels: 20, Layer 2 VLANs: up to 64, Typical client count: 50
Wireless LAN: 802.11a/b/g/n/ac/ax
Broadband Transmission Technology: 2.4 GHz / 5 GHz
Cellular Data Connectivity Technology: 5G NR, FDD LTE, HSPA+, LTE Advanced Pro, TDD LTE, UMTS, WCDMA
Internet of Things (IoT) Compatible: Yes
Antennas: 7
Antenna Form Factor: External detachable
Key Features: Firewall, USB port
Features: 2x2 MU-MIMO technology, 3GPP Release 16, Access Point operational mode, Docker Support, Dual core CPU, eSIM support, IDS/IPS support
Connectivity
Expansion Slots: 2 (total) / 2 (free) x Nano-SIM
WAN Ports Quantity: 2
Power
Device Type: External power adapter
Power Consumption Operational: 11 watt
Memory and Processor
Processor Type: ARM8
RAM Installed: 921 megabyte
Flash Memory Installed: 8 GB
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
MTBF: 1,407,191 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Built-in Devices: Beidou, Galileo, GLONASS, GPS
Dimensions and Weight
Height: 1.6 inch
Width: 5.3 inch
Depth: 4.8 inch
Weight: 21.2 ounce
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11v
Warranty
Service Activation: No
