Product Information

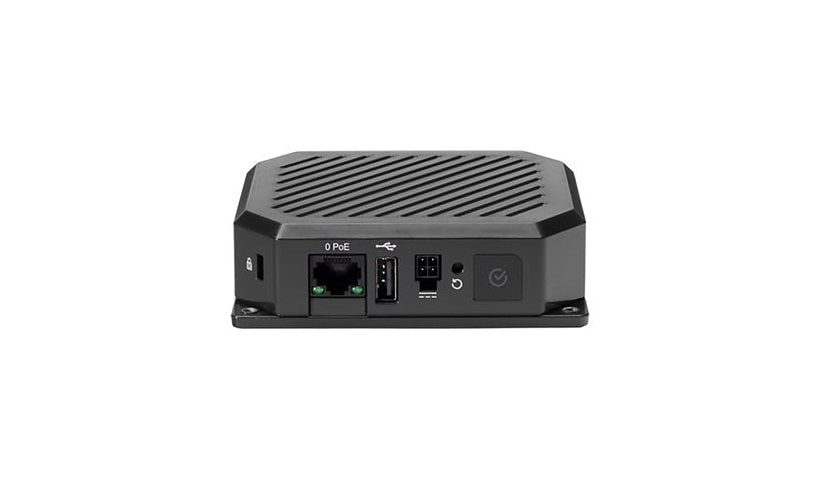

This Cradlepoint router, titled S450 (the model field says S400), is a semi-ruggedized LTE Cat 6 router listed for light industrial sites, kiosks and digital signage. It has Wi-Fi 5, a PoE GbE WAN/LAN port, dual Nano-SIM and GNSS. Quick specs note TAA compliance, and it includes 3 years of NetCloud IoT Essentials.
Key Features
- LTE Cat 6, dual Nano-SIM
- Wi-Fi 5 dual band
- 1 x GbE PoE WAN/LAN, USB 2.0
- 95 Mbps firewall, 20 Mbps VPN
- GNSS, SASE, Kensington slot
- 3 years NetCloud IoT Essentials, antennas and PSU included
Product Information
Product Type #2: Wireless cellular modem
Brand: Ericsson
Manufacturer: CradlePoint
Product Line: Ericsson Cradlepoint
Model: S400
Product Type: Wireless router
Product Type: Wireless cellular modem
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Bridge & Router: Maximum data rate (2.4 GHz): 150 Mbps, Maximum data rate (5 GHz): 433 Mbps, Stateful firewall throughput: 95 Mbps, VPN throughput (IPSec): 20 Mbps
Encryption: WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
Modem Transmission Data Rate: 150 MBps
Line Coding Format: 16 QAM
Capacity: Concurrent TCP sessions: 32000, Concurrent VPN tunnels: 5, Layer 2 VLANs: up to 64, Typical client count: 25
Wireless LAN: 802.11a/b/g/n/ac
Broadband Transmission Technology: 2.4 GHz / 5 GHz
Cellular Data Connectivity Technology: FDD LTE, TDD LTE
IoT Communications Technology: LTE Cat 6
Internet of Things (IoT) Compatible: Yes
Antennas: 3
Antenna Form Factor: External detachable
Key Features: Firewall, USB port, VPN support
Features: 2x2 MIMO technology, 3GPP Release 11, GPS/GLONASS/Galileo/BeiDou support, Plastic housing, Reset button, Secure Access Service Edge (SASE), Security slot (Kensington security lock compatible)
Bundled Services: 3 years NetCloud IoT Essentials Plan
Connectivity
Interface Provided: Antenna: 1 x RP-SMA - Wi-Fi, Antenna: 2 x SMA - LTE, USB 2.0: 1 x 4 pin USB Type A, WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T (PoE) - RJ-45
Expansion Slots: 1 expansion slot, 2 (total) / 2 (free) x Nano-SIM
WAN Ports Quantity: 1
Power
Device Type: External power adapter
Technical Information
Min Operating Temperature: -4 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
MTBF: 1,828,355 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Built-in Devices: GNSS receiver
Dimensions and Weight
Height: 1.2 inch
Width: 3.9 inch
Depth: 4.1 inch
Weight: 7.79 ounce
Included Items
Included Accessories: Antennas, Power supply
Certifications and Listing
Compliant Standards: IEEE 802.11k, IEEE 802.11v, Wi-Fi CERTIFIED
Warranty
Service Activation: No
