Product Information

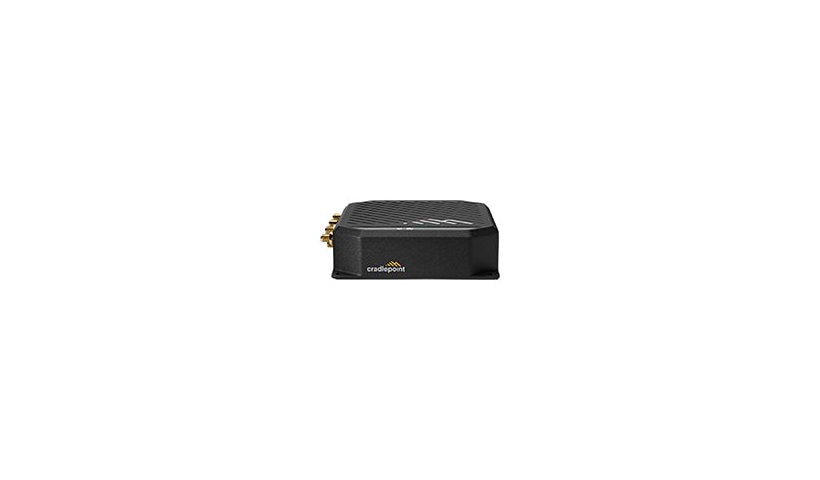

This Cradlepoint S700-C4D bundle includes 3 years of NetCloud IoT Essentials plus Advanced. The semi-ruggedized LTE Cat 4 router has an aluminum housing, Wi-Fi 6, Gigabit WAN and LAN and 480 Mbps firewall throughput.
Key Features
- LTE Cat 4, dual Nano-SIM
- Wi-Fi 6, GNSS
- GbE WAN and LAN, USB 2.0
- 480 Mbps firewall
- Aluminum housing, Kensington slot
- 3 years NetCloud IoT Essentials + Advanced
Product Information
Product Type #2: Wireless cellular modem
Brand: CradlePoint
Manufacturer: CradlePoint
Product Line: Cradlepoint S700 Series
Model: S700-C4D
Product Type: Wireless router
Product Type: Wireless cellular modem
Packaged Quantity: 1
Color Category: Black
Country: North America (US and Canada)
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Bridge & Router: IPS throughput: 480 Mbps, Maximum data rate (2.4 GHz): 574 Mbps, Maximum data rate (5 GHz): 1.2 Gbps, Stateful firewall throughput: 480 Mbps, VPN throughput (IPSec): 50 Mbps
Encryption: WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
Modem Transmission Data Rate: 150 MBps
Line Coding Format: 16 QAM
Capacity: Concurrent TCP sessions: 100000, Concurrent VPN tunnels: 15, Typical client count: 20
Wireless LAN: 802.11a/b/g/n/ac/ax
Broadband Transmission Technology: 2.4 GHz / 5 GHz
Cellular Data Connectivity Technology: DC-HSPA+, HSPA+, LTE, UMTS, WCDMA
IoT Communications Technology: LTE Cat 4
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: External detachable
Key Features: Firewall, USB port, VPN support
Features: 2x2 MIMO technology, Aluminum housing, Cloud managed, Security slot (Kensington security lock compatible), Short Message Service (SMS)
Bundled Services: 3 years NetCloud IoT Essentials + Advanced Plan
Connectivity
Interface Provided: Antenna: 1 x SMA - GNSS antenna, Antenna: 2 x RP-SMA - Wi-Fi, Antenna: 2 x SMA - LTE, LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45, USB 2.0: 1 x 4 pin USB Type A, WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45
Expansion Slots: 2 (total) / 2 (free) x Nano-SIM
WAN Ports Quantity: 1
Technical Information
Min Operating Temperature: -4 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 10 - 90%
MTBF: 428,000 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: Cellular, Cloud, Modem, Power
Built-in Devices: GNSS receiver
Dimensions and Weight
Height: 1.3 inch
Width: 4.8 inch
Depth: 4.6 inch
Weight: 18.2 ounce
Certifications and Listing
Compliant Standards #2: CB Scheme, CP65, cUL, EN 61373 Category 2, EN 62368-1, IEC/EN 61373 Category 1 Class B, IP30, ISO 7637-2, MIL-STD 810H 514.8, MIL-STD 810H 516.8, REACH, RoHS, SAE J1455, UL, WEEE
Compliant Standards: Wi-Fi CERTIFIED
Compliant Standards: CB Scheme, CP65, cUL, EN 61373 Category 2, EN 62368-1, IEC/EN 61373 Category 1 Class B, IP30, ISO 7637-2, MIL-STD 810H 514.8, MIL-STD 810H 516.8, REACH, RoHS, SAE J1455, UL, WEEE
Warranty
Service Activation: No
