Product Information

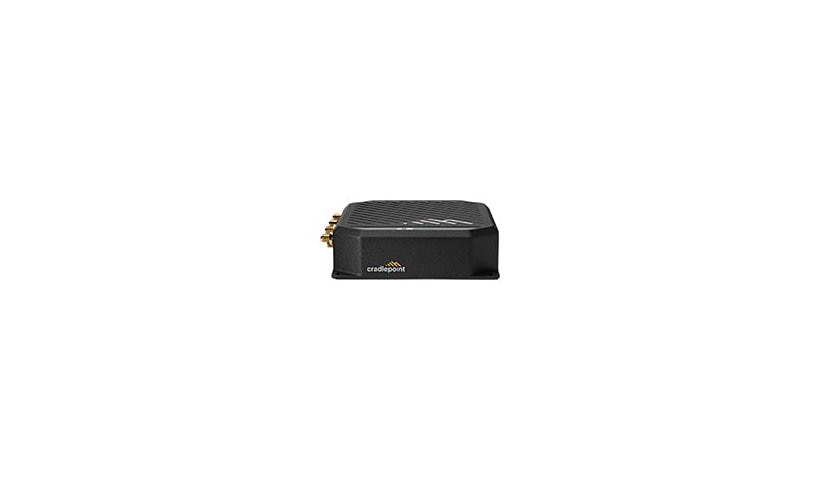

The Cradlepoint S750-C4D is a semi-ruggedized LTE Cat 4 router for IoT and light industrial sites, with one WAN and one LAN Gigabit port, dual Nano-SIM and GNSS. Unlike the S700, the specs list no Wi-Fi radio. It includes 3 years of NetCloud IoT Essentials.
Key Features
- LTE Cat 4, dual Nano-SIM
- 1 x GbE WAN, 1 x GbE LAN, USB 2.0
- No Wi-Fi listed
- 480 Mbps firewall/IPS, 50 Mbps VPN
- Aluminum housing, GNSS, 2 LTE antennas
- 3 years NetCloud IoT Essentials
Product Information
Product Type #2: Wireless cellular modem
Brand: CradlePoint
Manufacturer: CradlePoint
Product Line: Cradlepoint S700 Series
Model: S750-C4D
Product Type: Router
Product Type: Wireless cellular modem
Packaged Quantity: 1
Color Category: Black
Country: North America (US and Canada)
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Bridge & Router: IPS throughput: 480 Mbps, Stateful firewall throughput: 480 Mbps, VPN throughput (IPSec): 50 Mbps
Modem Transmission Data Rate: 150 MBps
Line Coding Format: 16 QAM
Capacity: Concurrent TCP sessions: 100000, Concurrent VPN tunnels: 15, Typical client count: 20
Cellular Data Connectivity Technology: DC-HSPA+, HSPA+, LTE, UMTS, WCDMA
IoT Communications Technology: LTE Cat 4
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: External detachable
Key Features: Firewall, USB port, VPN support
Features: 2x2 MIMO technology, Aluminum housing, Cloud managed, Security slot (Kensington security lock compatible), SMS remote control
Bundled Services: 3 years NetCloud IoT Essentials Plan
Connectivity
Interface Provided: Antenna: 1 x SMA - GNSS antenna, Antenna: 2 x SMA - LTE, LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45, USB 2.0: 1 x 4 pin USB Type A, WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45
Expansion Slots: 2 (total) / 2 (free) x Nano-SIM
WAN Ports Quantity: 1
Power
Device Type: External power adapter
Technical Information
Min Operating Temperature: -4 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 10 - 90%
MTBF: 483,373 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: Cellular, Cloud, Modem, Power
Built-in Devices: GNSS receiver
Dimensions and Weight
Height: 1.3 inch
Width: 4.8 inch
Depth: 4.6 inch
Weight: 18.2 ounce
Included Items
Included Accessories: 2 x cellular antennas
Warranty
Service Activation: No
