Product Information

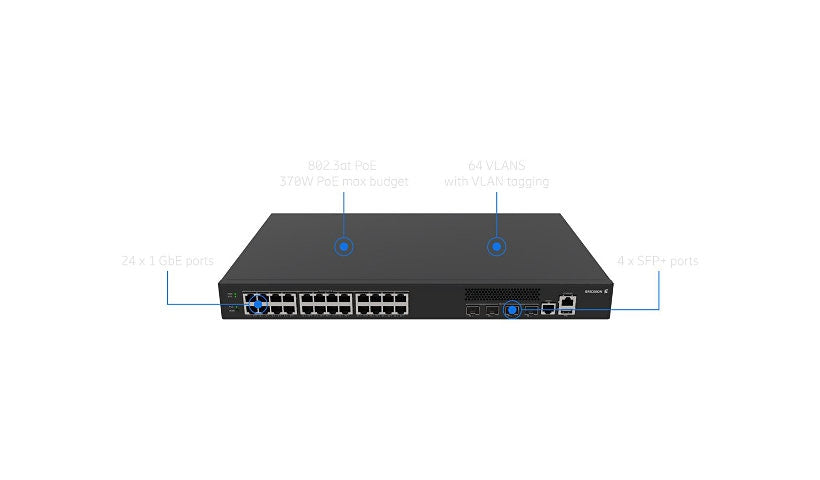

Ericsson Cradlepoint's SW2400P is a stackable Layer 2 LAN switch with 24 Gigabit PoE+ ports and four 10G SFP+ uplinks, made to pair with Cradlepoint routers. It has a 370 W PoE budget and 128 Gbps of switching capacity, and comes with one year of the NetCloud LAN Switch Essentials plan.
Key Features
- 24 x 10/100/1000 RJ-45 PoE+ ports
- 4 x 10G SFP+ uplinks
- 370 W PoE budget
- 128 Gbps switching, 95 Mpps
- 1 year NetCloud LAN Switch Essentials
- 1 power supply, rack mount
Product Information
Brand: CradlePoint
Manufacturer: CradlePoint
Product Line: Cradlepoint
Model: SW2400P
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Country: North America (US and Canada)
Network and Communication
Switching Type: Gigabit Ethernet
Performance: Forwarding rate: 95 Mpps, Switching capacity: 128 Gbps
Capacity: Packet buffer size: 1.5 MB, VLANs supported: 64
MAC Address Table Size: 16K entries
Jumbo Frame Support: 10KB
Stackable: Stackable
Features: 802.1x authentication, Dynamic power allocation, Energy-Efficient Ethernet (EEE), Indoor use, Layer 2 switching, LLDP-MED, VLAN Tagging
Bundled Services: 1 year NetCloud LAN Switch Essentials Plan
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): SFP+ (uplink)
Interface Provided: 1 x console RJ-45, 1 x USB 2.0 Type A, 24 x 10/100/1000 Base-T (PoE+) RJ-45, 4 x 10Gbit LAN SFP+ uplink
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 450 watt
PoE Budget: 370 watt
Power Supplies Installed: 1
Power Supplies Supported: 1
Memory and Processor
RAM Installed: 1 GB
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
MTBF: 125,675 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Built-in Devices: 256 MB NAND flash
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 11 inch
Weight: 10.47 lbs
Certifications and Listing
Compliant Standards: IEEE 802.3at, IEEE 802.3az
Compliant Standards: CB Scheme, CISPR Class A, CP65, cUL, FCC Class A certified, IC, RCM, REACH, RoHS, UKCA, UL, WEEE
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
