Product Information

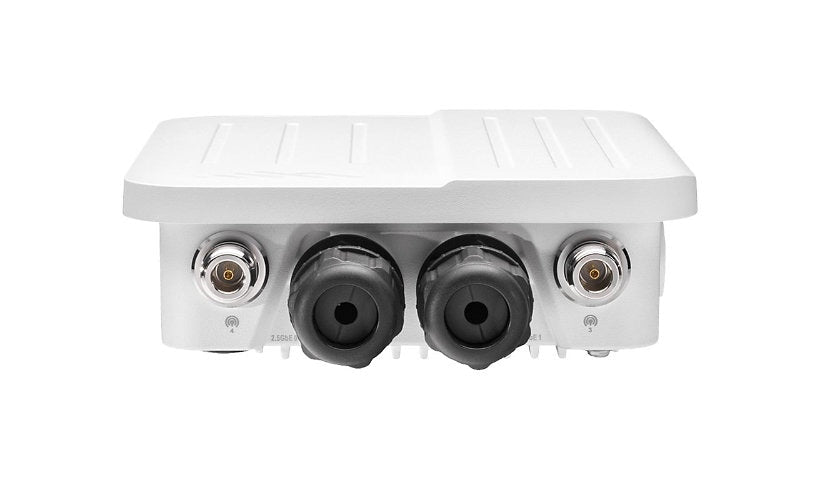

The Cradlepoint W1855-5GC Captive Modem Accessory is an outdoor 5G cellular modem in a metal housing with two 2.5GbE ports and PoE. It supports 5G NR and LTE Advanced Pro (3GPP Release 16) with 4x4 MIMO, dual Nano SIM slots and four N connector antennas, up to 3.4 Gbps. It carries a limited lifetime warranty.
Key Features
- 5G NR and LTE Advanced Pro, up to 3.4 Gbps
- 2 x 2.5GBase-T RJ-45, PoE
- 4x4 MIMO, 4 x N connector antennas
- 2 x Nano SIM, passive GNSS
- Outdoor rated metal housing
- Limited lifetime warranty
Product Information
Brand: CradlePoint
Manufacturer: CradlePoint
Product Line: Cradlepoint
Model: W1855-5GC Captive Modem Accessory
Product Type: Wireless cellular modem
Packaged Quantity: 1
Color Category: White
Country: North America
Network and Communication
Mobile Activation: Mobile Activation Available - Special Attn
Features #2: Passive GNSS
Connectivity Technology: Wired
High-Speed Communication Standard: LTE Advanced Pro
Data Link Protocols: 2.5 Gigabit Ethernet
Modem Transmission Data Rate: 3.4 GBps
Line Coding Format: 256 QAM
Cellular Data Connectivity Technology: 5G NR, HSPA+, LTE Advanced Pro, WCDMA
Cellular Generation: 5G
Cellular Band: 5G n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79 / LTE B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B34/B38/B39/B40/B41/B42/B43/B46/B48/B66/B71 / HSPA+ B1/B2/B4/B5/B8/
SIM Card Supported: Nano-SIM
SIM Slots: 2
Ethernet Technology: Wireless
Antennas: 4
Antenna Form Factor: External detachable
Features: 3GPP Release 16, 4x4 MIMO technology, Metal housing, Outdoor, Power over Ethernet (PoE)
Features: Passive GNSS
Connectivity
Interface Provided: 2 x 2.5GBase-T - RJ-45, 4 x antenna - N connector
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 10 - 90%
MTBF: 376,671 Hours
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 2.2 inch
Width: 8 inch
Depth: 6.5 inch
Weight: 2.87 lbs
Certifications and Listing
Compliant Standards #2: IEEE 802.3at
Compliant Standards: CB Scheme, CP65, cUL, EN 60950-22, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 62368-1, GCF, IEC 60068-2-11, IEC 60068-2-32, IP67, ITU-T K.21, PTCRB, REACH, RoHS, UL, WEEE
Compliant Standards: IEEE 802.3at
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - limited lifetime warranty
Service Activation: Yes
