Product Information

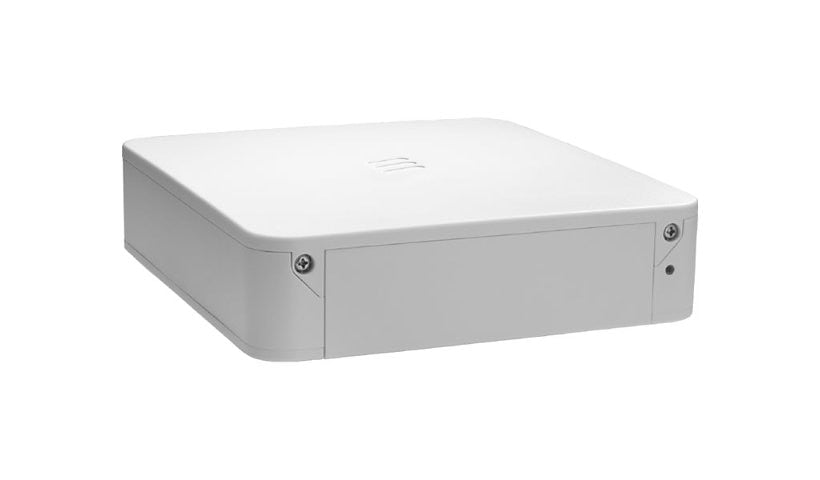

The Cradlepoint W2255-5GF-NA is a 5G wideband adapter that mounts on a wall or ceiling to bring 5G to a site. It supports 5G Sub-6 GHz and LTE Cat 20 with eSIM, has two 2.5GbE ports (one PoE), lightning protection and up to 2.4 Gbps throughput. It includes 1 year of NetCloud Branch 5G Adapter Essentials.
Key Features
- 5G FR1 Sub-6 GHz, LTE Cat 20, eSIM
- 2 x 2.5GbE (1 PoE), USB-C
- Up to 2.4 Gbps throughput
- 8 antennas, multi-constellation GNSS
- Lightning protection, wall or ceiling mount
- 1 year NetCloud Branch 5G Adapter Essentials
Product Information
Product Type #2: Wireless cellular modem
Brand: CradlePoint
Manufacturer: CradlePoint
Product Line: Cradlepoint W-Series 5G Wideband Adapter
Model: W2255-5GF-NA
Product Type: Router
Product Type: Wireless cellular modem
Packaged Quantity: 1
Color Category: White
Country: Canada, United States
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 2.5 Gigabit Ethernet
Bridge & Router: Captive modem mode throughput: 2.4 Gbps, Downlink bandwidth: 4.9 Gbps, IP pass-through mode throughput: 2.4 Gbps, Standard NAT mode throughput: 2.4 Gbps, Uplink bandwidth: 900 Mbps
Data Transfer Rate: 2.5 GBps
Modem Transmission Data Rate: 4.9 GBps
Line Coding Format: 256 QAM
Cellular Data Connectivity Technology: 5G FR1, 5G Sub-6 Ghz, LTE Advanced Pro Cat 20
IoT Communications Technology: LTE Cat 20
Internet of Things (IoT) Compatible: Yes
Antennas: 8
Antenna Form Factor: External integrated and internal
Key Features: USB port
Features: 2x2 MIMO technology, 3GPP Release 17, 4x4 MIMO technology, eSIM support, Lightning protection, Passive GNSS, SMS remote control
Bundled Services: 1 year NetCloud Branch 5G Adapter Essentials Plan
Connectivity
Interface Provided: USB 2.0: 1 x 24 pin USB-C, WAN / LAN: 1 x 2.5GBase-T - RJ-45, WAN / LAN: 1 x 2.5GBase-T (PoE) - RJ-45
Expansion Slots: 2 (total) / 2 (free) x Nano-SIM
Power
Device Type: External power adapter
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 0 - 100%
MTBF: 448,311 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Ceiling-mountable, Wall-mountable
Built-in Devices: GPS / GLONASS / Galileo / Beidou / QZSS / SBAS
Dimensions and Weight
Height: 2.4 inch
Width: 7.9 inch
Depth: 8.3 inch
Weight: 2.91 lbs
Included Items
Included Accessories: 4 screws, 4 x wall anchors, I/O gasket, Mounting bracket
Warranty
Service Activation: No
