Product Information

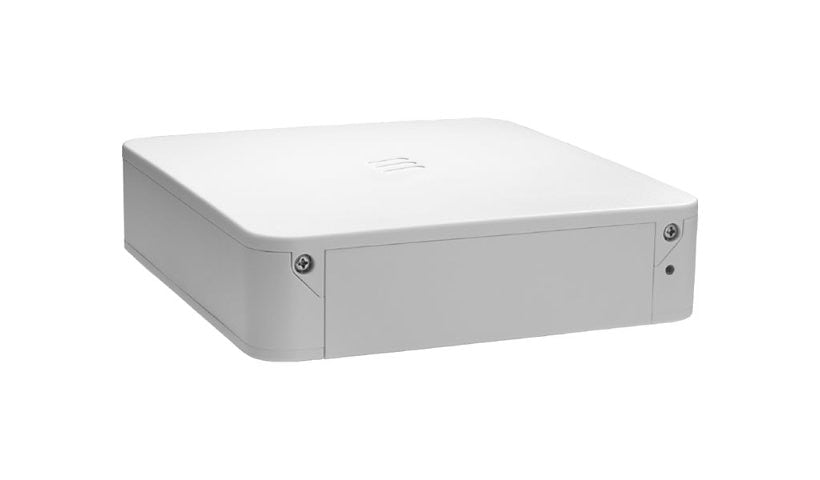

The Cradlepoint W2255-5GF-NA is a wall or ceiling mounted 5G wideband adapter with 5G FR1 and LTE Advanced Pro Cat 20, eight antennas and lightning protection. It offers up to 4.9 Gbps down and 2.4 Gbps throughput over two 2.5GbE ports, one with PoE, and includes a 5 year NetCloud Branch 5G Adapter Essentials Plan.
Key Features
- 5 years NetCloud Branch 5G Adapter Essentials Plan
- 5G FR1 and LTE Cat 20, 3GPP Release 17
- Up to 4.9 Gbps down, 2.4 Gbps throughput
- 1 x 2.5GbE plus 1 x 2.5GbE PoE, USB-C
- 2 x Nano SIM, eSIM, multi-constellation GNSS
- Lightning protection, mounting bracket included
Product Information
Product Type #2: Wireless cellular modem
Brand: CradlePoint
Manufacturer: CradlePoint
Product Line: Cradlepoint W-Series 5G Wideband Adapter
Model: W2255-5GF-NA
Product Type: Router
Product Type: Wireless cellular modem
Packaged Quantity: 1
Color Category: White
Country: Canada, United States
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 2.5 Gigabit Ethernet
Bridge & Router: Captive modem mode throughput: 2.4 Gbps, Downlink bandwidth: 4.9 Gbps, IP pass-through mode throughput: 2.4 Gbps, Standard NAT mode throughput: 2.4 Gbps, Uplink bandwidth: 900 Mbps
Data Transfer Rate: 2.5 GBps
Modem Transmission Data Rate: 4.9 GBps
Line Coding Format: 256 QAM
Cellular Data Connectivity Technology: 5G FR1, 5G Sub-6 Ghz, LTE Advanced Pro Cat 20
IoT Communications Technology: LTE Cat 20
Internet of Things (IoT) Compatible: Yes
Antennas: 8
Antenna Form Factor: External integrated and internal
Key Features: USB port
Features: 2x2 MIMO technology, 3GPP Release 17, 4x4 MIMO technology, eSIM support, Lightning protection, Passive GNSS, SMS remote control
Bundled Services: 5 years NetCloud Branch 5G Adapter Essentials Plan
Connectivity
Interface Provided: USB 2.0: 1 x 24 pin USB-C, WAN / LAN: 1 x 2.5GBase-T - RJ-45, WAN / LAN: 1 x 2.5GBase-T (PoE) - RJ-45
Expansion Slots: 2 (total) / 2 (free) x Nano-SIM
Power
Device Type: External power adapter
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 0 - 100%
MTBF: 448,311 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Ceiling-mountable, Wall-mountable
Built-in Devices: GPS / GLONASS / Galileo / Beidou / QZSS / SBAS
Dimensions and Weight
Height: 2.4 inch
Width: 7.9 inch
Depth: 8.3 inch
Weight: 2.91 lbs
Included Items
Included Accessories: 4 screws, 4 x wall anchors, I/O gasket, Mounting bracket
Warranty
Service Activation: No
