Product Information

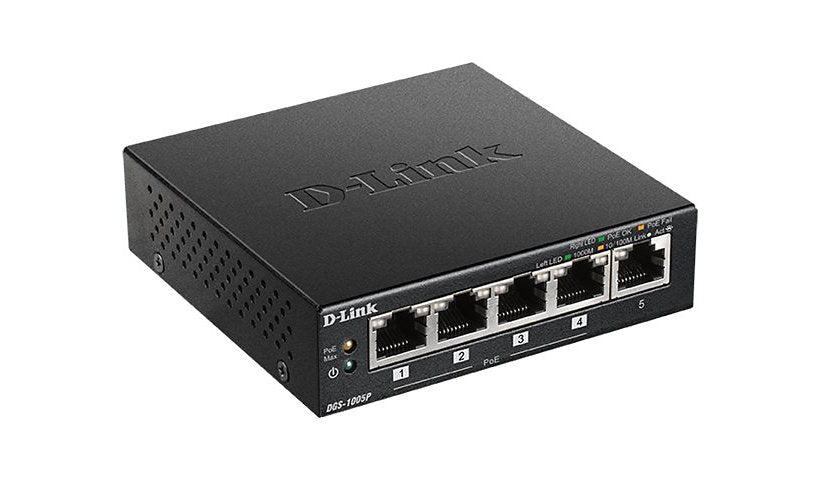

D-Link's DGS-1005P is a compact desktop switch with five Gigabit ports, four of them PoE+ at up to 30 W each, sharing a 60 W budget. It is fanless and quiet, ideal for powering a few cameras or access points.
Key Features
- 5 x Gigabit RJ-45 ports
- 4 x PoE+ ports, 30 W each
- 60 W PoE budget
- 10 Gbps switching fabric
- Fanless desktop design
Product Information
Brand: D-Link
Manufacturer: D-Link
Product Line: D-Link DGS
Model: 1005P
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Performance: Forwarding rate: 7.44 Mpps, Switching fabric speed: 10 Gbps
MAC Address Table Size: 2K entries
Features: 64KB packet buffer, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Energy-Efficient Ethernet (EEE), Fanless, Flow control, SOHO (Small Office/Home Office), Store and forward
Connectivity
Ports: 5
Port Quantity: 5
Port Type: 10/100/1000 (4 PoE+)
Interface Provided: 5 x 1000Base-T RJ-45 4 ports (PoE+) - 30 W
Power Over Ethernet (PoE): PoE+
Power
Device Type: External power adapter
Power Consumption Operational: 64.5 watt
PoE Budget: 60 watt
Standby Power Consumption: 0.54 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Min Storage Temperature: 14 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 0 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: Link/activity/speed, PoE, Power, Status
Dimensions and Weight
Height: 1.1 inch
Width: 3.9 inch
Depth: 3.9 inch
Weight: 9.17 ounce
Certifications and Listing
Compliant Standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Compliant Standards: BSMI, CB, cUL, FCC, LVD, Plug and Play, RCM, VCCI
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
