Product Information

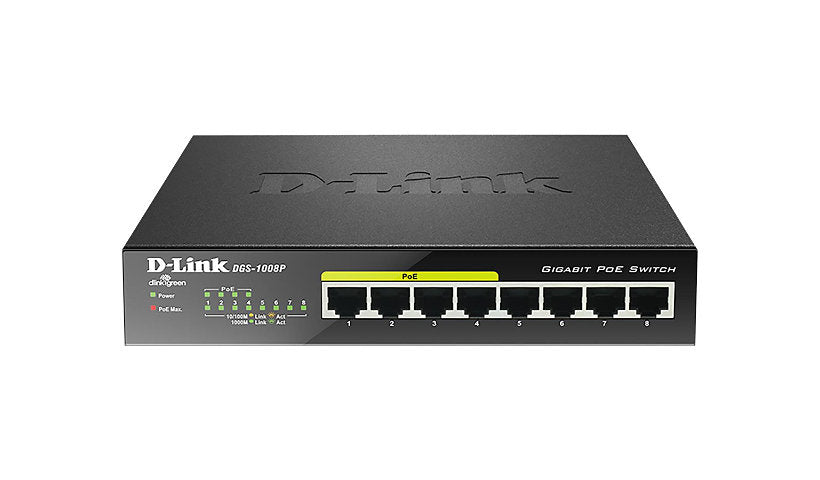

D-Link's DGS-1008P is a plug and play desktop switch with eight Gigabit ports, four of which supply PoE for cameras, phones or access points. It offers 16 Gbps of switching capacity, cable diagnostics and D-Link Green power saving.
Key Features
- 8 x Gigabit RJ-45 ports
- 4 ports with PoE
- 16 Gbps switching capacity
- Unmanaged, plug and play
- Cable diagnostics
- D-Link Green technology
Product Information
Brand: D-Link
Manufacturer: D-Link
Product Line: D-Link DGS
Model: 1008P
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: No
Performance: Switching capacity: 16 Gbps
MAC Address Table Size: 4K entries
Jumbo Frame Support: 9720 bytes
Features: Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Cable Diagnostics Function, D-Link Green Technology, Flow control, Full duplex capability, Half duplex mode, Jumbo Frames support, Packet filtering, Quality of Service (QoS), Store and forward
Connectivity
Ports: 8
Port Quantity: 4
Port Type: 10/100/1000 (PoE)
Ports (2nd) Quantity: 4
Ports Type (2nd): 10/100/1000
Interface Provided: 4 x 1000Base-T RJ-45, 4 x 1000Base-T RJ-45 PoE
Power Over Ethernet (PoE): PoE
Power
Device Type: External power adapter
Frequency: 50/60 hertz
Memory and Processor
RAM Installed: 192 kilobyte
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 0 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: Link OK, Link/activity, Port status, Port transmission speed, Power
Dimensions and Weight
Height: 1.5 inch
Width: 7.5 inch
Depth: 4.7 inch
Certifications and Listing
Compliant Standards: C-Tick Class B, cUL, FCC Class B certified, ICES-003 Class B, RoHS, VCCI Class B ITE
Compliant Standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
