Product Information

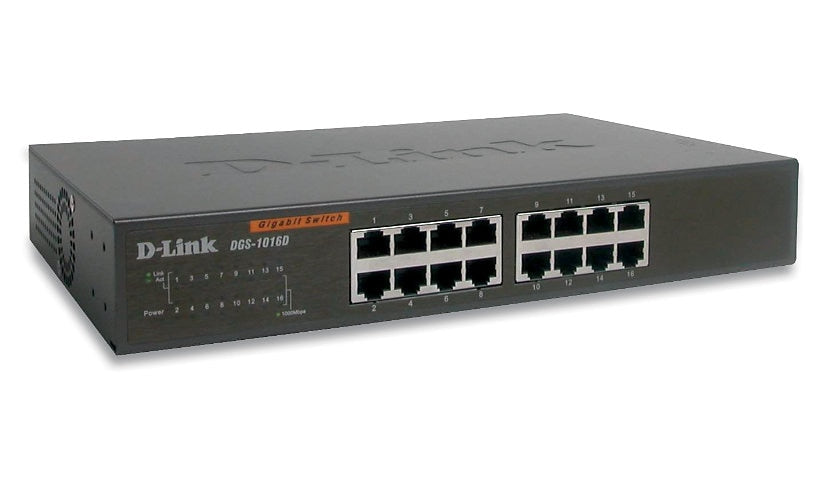

D-Link's DGS-1016D connects sixteen devices at Gigabit speed with 32 Gbps of switching bandwidth. It needs no setup, runs fanless with a built in power supply and fits on a desk or in a rack.
Key Features
- 16 x Gigabit RJ-45 ports
- 32 Gbps switching bandwidth
- Unmanaged, plug and play
- Fanless, internal power supply
- Desktop or rack mount
Product Information
Brand: D-Link
Manufacturer: D-Link
Product Line: D-Link DGS
Model: 1016D
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black, Gray
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: No
Performance: Switching fabric bandwidth: 32 Gbps
MAC Address Table Size: 8K entries
Jumbo Frame Support: 9600 bytes
Features: Auto-uplink (auto MDI/MDI-X), Cable Diagnostics Function, D-Link Green Technology, Energy Efficient Ethernet, Fanless, Flow control, Full duplex mode, Half duplex mode, Jumbo Frames support, Quality of Service (QoS), Store and forward
Connectivity
Ports: 16
Port Quantity: 16
Port Type: 10/100/1000
Interface Provided: 16 x 1000Base-T RJ-45
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Min Storage Temperature: 14 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 5 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Rack-mountable
Status Indicators: Link/activity, Port transmission speed, Power
Dimensions and Weight
Height: 1.7 inch
Width: 11 inch
Depth: 7.1 inch
Certifications and Listing
Compliant Standards: C-Tick Class A, CB, cUL, FCC Class A certified, ICES-003 Class A, RoHS, VCCI Class A
Compliant Standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
