Product Information

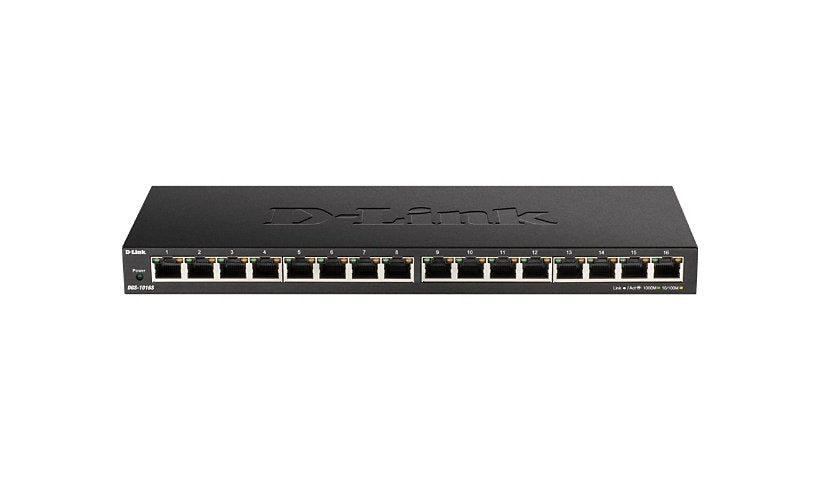

The D-Link DGS-1016S is a slim desktop switch with sixteen Gigabit ports, 32 Gbps of capacity and a 512 KB packet buffer. It is fanless, supports Energy Efficient Ethernet and uses about 8.89 W.
Key Features
- 16 x Gigabit RJ-45 ports
- 32 Gbps switching capacity
- 512 KB packet buffer
- Unmanaged, plug and play
- Fanless, about 8.89 W
Product Information
Brand: D-Link
Manufacturer: D-Link
Product Line: D-Link DGS
Model: 1016S
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: No
Performance: Packet forwarding rate: 1488000 packets per second, Switching capacity: 32 Gbps
Capacity: Queues: 8
MAC Address Table Size: 8K entries
Jumbo Frame Support: 9216 bytes
Features: 512KB packet buffer, Auto-uplink (auto MDI/MDI-X), Cable length detection, Energy-Efficient Ethernet (EEE), Fanless, Flow control, Quality of Service (QoS), Store and forward
Connectivity
Ports: 16
Port Quantity: 16
Port Type: 10/100/1000
Interface Provided: 16 x 1000Base-T RJ-45
Power
Device Type: External power adapter
Power Consumption Operational: 8.89 watt
Electric Current Required: 1 A
Standby Power Consumption: 3.37 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 5 - 95% (non-condensing)
MTBF: 564,658 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: Link/activity, Port transmission speed, Power
Dimensions and Weight
Height: 1 inch
Width: 11 inch
Depth: 4.3 inch
Weight: 27.16 ounce
Certifications and Listing
Compliant Standards: Plug and Play, RoHS
Compliant Standards: IEEE 802.1p, IEEE 802.3az, IEEE 802.3x
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
