Product Information

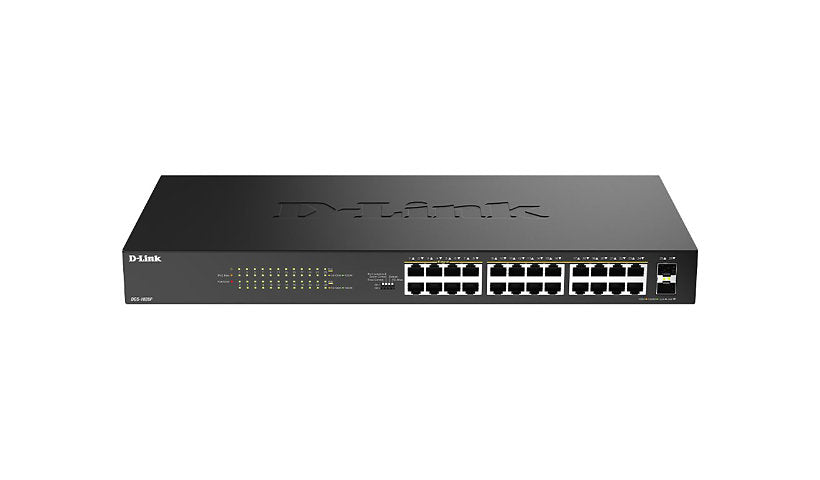

D-Link's DGS-1026P is an unmanaged switch with 24 Gigabit PoE ports at up to 30 W each, a 240 W budget and two combo Gigabit SFP uplinks. Extend mode, PD-Alive and port isolation help with camera and AP deployments, and it fits on a desk or in a rack.
Key Features
- 24 x Gigabit PoE ports, 30 W each
- 2 x combo Gigabit SFP uplinks
- 240 W PoE budget
- 52 Gbps switching capacity
- Extend mode, PD-Alive, port isolation
- Desktop or rack mount, metal housing
Product Information
Brand: D-Link
Manufacturer: D-Link
Product Line: D-Link DGS
Model: 1026P
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black, Gray
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: No
Performance: Forwarding rate: 38.69 Mpps, Packet buffer size: 4.1 Mbit, Switching capacity: 52 Gbps
MAC Address Table Size: 8K entries
Jumbo Frame Support: 9216 bytes
Features: Auto-MDI/MDIX support, Cable Diagnostics Function, D-Link Green Technology, Energy Efficient Ethernet, Extend mode, Flow control, Metal housing, PD-Alive, Port isolation, QoS, Smart Fans, Store-and-forward technology, Storm Control
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 10/100/1000 (PoE)
Ports (2nd) Quantity: 2
Ports Type (2nd): Combo Gigabit SFP
Interface Provided: 2 x Gigabit LAN SFP uplink, 24 x 1000Base-T RJ-45 PoE - 30 W
Power Over Ethernet (PoE): PoE
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50 - 60 hertz
PoE Budget: 240 watt
Standby Power Consumption: 15.967 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 95% RH (non-condensing)
Min Storage Temperature: 14 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 5 - 95% RH (non-condensing)
MTBF: 426,692.94 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Rack-mountable
Status Indicators: Link/activity/speed, PoE alert, PoE max, Status
Dimensions and Weight
Height: 1.7 inch
Width: 8.3 inch
Depth: 17.4 inch
Weight: 7.02 lbs
Certifications and Listing
Compliant Standards: IEEE 802.3at
Compliant Standards: BSMI, FCC, LVD, Plug and Play
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - extended warranty with product registration - limited lifetime warranty
