Product Information

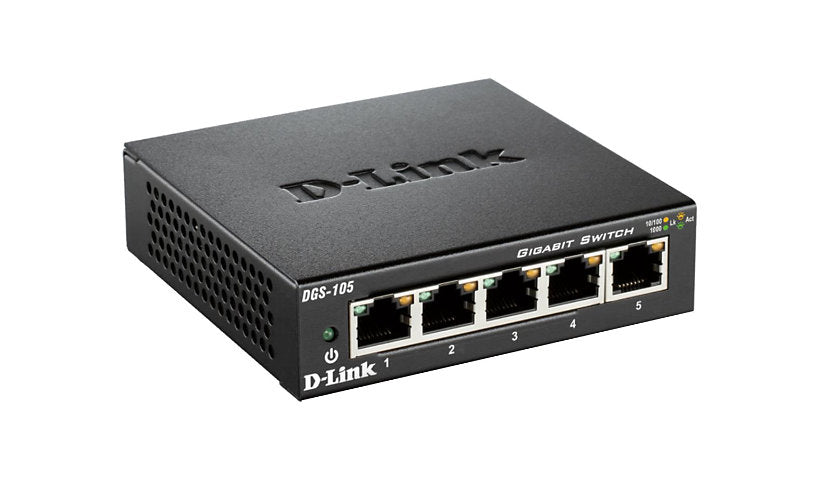

D-Link's DGS-105 is a plug and play 5-port Gigabit desktop switch in a metal housing. It offers auto negotiation and flow control and draws about 4.5 W from an external adapter.
Key Features
- 5 x 10/100/1000 RJ-45 ports
- Unmanaged, plug and play
- Metal housing
- Flow control, store and forward
- About 4.5 W, external adapter
Product Information
Brand: D-Link
Manufacturer: D-Link
Product Line: D-Link DGS
Model: 105
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Network and Communication
Switching Type: Gigabit Ethernet
MAC Address Table Size: 8K entries
Features: Auto-negotiation, Auto-sensing per device, Flow control, Packet filtering, Store and forward
Connectivity
Ports: 5
Port Quantity: 5
Port Type: 10/100/1000
Interface Provided: 5 x 1000Base-T RJ-45
Power
Device Type: External power adapter
Power Consumption Operational: 4.5 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 95%
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: Link/activity, Power
Dimensions and Weight
Height: 1.2 inch
Width: 7.8 inch
Depth: 4.5 inch
Weight: 1.1 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Compliant Standards: CSA, FCC Class B certified
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
