Product Information

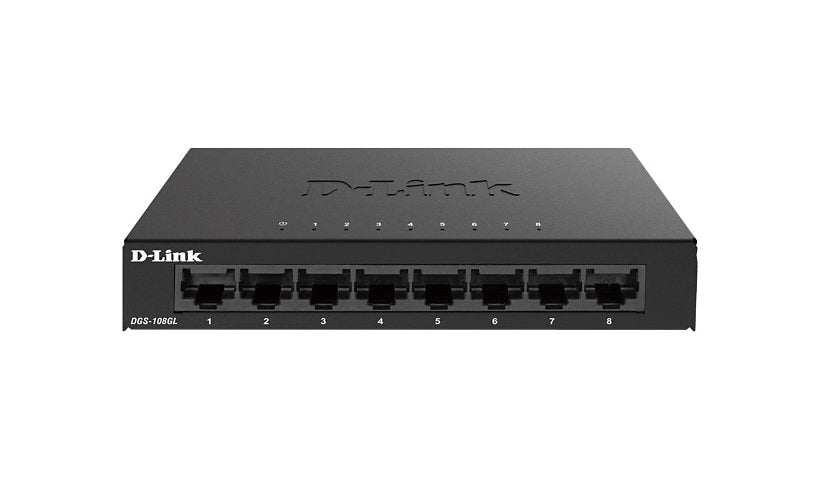

D-Link's DGS-108GL is a plug in and go unmanaged switch with eight Gigabit ports in a fanless metal housing. It offers 16 Gbps of switching capacity, QoS for voice traffic and D-Link Green power saving, and runs from a 5 V DC adapter.
Key Features
- 8 x 10/100/1000 RJ-45 ports
- 16 Gbps switching capacity
- Unmanaged, fanless
- Metal housing, desktop
- D-Link Green, Energy Efficient Ethernet
- 5 V DC external adapter
Product Information
Brand: D-Link
Manufacturer: D-Link
Product Line: D-Link DGS
Model: 108GL
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: No
Performance: Packet filter/forwarding rate (10 Mbps): 14880 pps, Packet filter/forwarding rate (100 Mbps): 148800 pps, Packet filter/forwarding rate (1000 Mbps):: 1488000 pps, Switching capacity: 16 Gbps
MAC Address Table Size: 4K entries
Features: Auto-uplink (auto MDI/MDI-X), D-Link Green Technology, Energy-Efficient Ethernet (EEE), Fanless, Flow control, Metal housing, NAS support, Quality of Service (QoS), SOHO (Small Office/Home Office), Store and forward, VoIP support
Connectivity
Ports: 8
Port Quantity: 8
Port Type: 10/100/1000
Interface Provided: 8 x 1000Base-T RJ-45
Power
Device Type: External power adapter
Power Consumption Operational: 4.31 watt
Provided Voltage: DC 5 volt
Output Current: 1 ampere
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Min Storage Temperature: 14 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 5 - 95% (non-condensing)
MTBF: 1,402,428 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: Link/activity, Power
Dimensions and Weight
Height: 1 inch
Width: 5.5 inch
Depth: 2.6 inch
Certifications and Listing
Compliant Standards: FCC, Plug and Play, RoHS
Compliant Standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
