Product Information

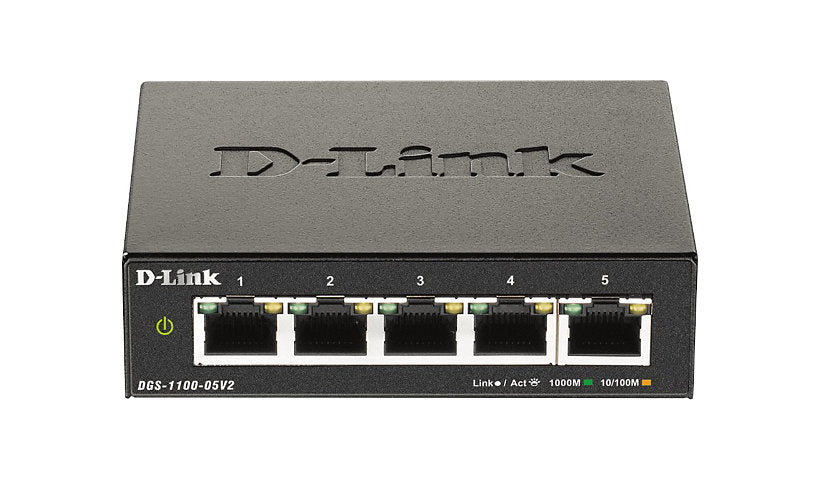

D-Link's DGS-1100-05V2 is a compact smart managed switch with five Gigabit ports. A web interface handles VLANs, STP, static trunking, IGMP snooping and storm control, and it offers 10 Gbps of switching capacity while drawing about 3.42 W from an external adapter.
Key Features
- 5 x 10/100/1000 RJ-45 ports
- 10 Gbps switching, 7.4 Mpps
- Web smart management, VLAN, IGMP snooping
- D-Link Green, Energy Efficient Ethernet
- Desktop, external power adapter
Product Information
Brand: D-Link
Manufacturer: D-Link
Product Line: D-Link DGS
Model: 1100-05V2
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: ICMP
Routing Protocol: IGMP, IGMPv2, STP
Performance: Forwarding performance: 7.4 Mpps, Packet buffer size: 1 MB, Switching capacity: 10 Gbps
Capacity: IGMP groups: 128, VLAN IDs: 4094
MAC Address Table Size: 2K entries
Jumbo Frame Support: 9216 bytes
Features: ARP support, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Bandwidth control, Broadcast Storm Control, Cable Diagnostics Function, D-Link Green Technology, DiffServ Code Point (DSCP) support, Energy-Efficient Ethernet (EEE), Fanless, Flow control, Full duplex mode, Half duplex mode, Head-of-line (HOL) Blocking Prevention, IGMP snooping, Loopback detection, Management Information Base (MIB), Management Information Base (MIB) II, Multicast Storm Control, Port mirroring, Port Security, Quality of Service (QoS), Strict Priority (SP), Unicast Storm Control, Unknown Storm Control, User Datagram Protocol (UDP), VLAN support, Voice VLAN, Weighted Round Robin (WRR)
Smart: Yes
Connectivity
Ports: 5
Port Quantity: 5
Port Type: 10/100/1000
Interface Provided: 5 x 1000Base-T RJ-45
Power
Device Type: External power adapter
Frequency: 50 - 60 hertz
Power Consumption Operational: 3.42 watt
Memory and Processor
Flash Memory Installed: 2 megabyte
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 0 - 90% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 0 - 95% (non-condensing)
MTBF: 1,562,055 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: Status
Dimensions and Weight
Height: 1.1 inch
Width: 4 inch
Depth: 3.2 inch
Weight: 8.11 ounce
Certifications and Listing
Compliant Standards: BSMI, CB, cUL, FCC Class B certified, LVD, RoHS 10, VCCI Class B
Compliant Standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - replacement - lifetime - response time: next business day
Service Activation: No
