Product Information

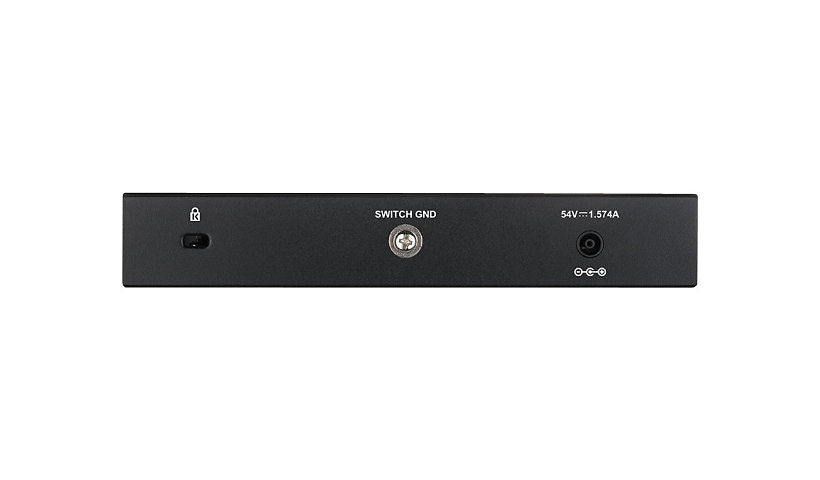

D-Link's DGS-1100-08PV2 is a fanless easy smart desktop switch with eight Gigabit PoE ports and a 64 W PoE budget. A simple web interface handles VLANs, QoS and storm control, and D-Link Green technology helps save power.
Key Features
- 8 x 10/100/1000 RJ-45 PoE ports
- 64 W PoE budget
- 16 Gbps switching capacity
- Easy smart, web management
- Fanless, D-Link Green
- Desktop, external power adapter
Product Information
Brand: D-Link
Manufacturer: D-Link
Product Line: D-Link EasySmart Switch
Model: DGS-1100-08P
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: HTTP
Performance: Forwarding performance: 11.9 Mpps, Switching capacity: 16 Gbps
MAC Address Table Size: 4K entries
Features: 1.5MB packet buffer, ARP support, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Bandwidth control, BOOTP support, Broadcast Storm Control, Cable Diagnostics Function, D-Link Green Technology, DHCP client, Fanless, Flow control, Full duplex mode, Half duplex mode, IGMP snooping, Layer 2 switching, Multicast Storm Control, Port mirroring, Quality of Service (QoS), Store and forward, Trunking, Unicast Storm Control, VLAN support, Weighted Round Robin (WRR), Weighted Round Robin (WRR) queuing
Smart: Yes
Edition: V2
Connectivity
Ports: 8
Port Quantity: 8
Port Type: 10/100/1000 (PoE)
Interface Provided: 8 x 1000Base-T RJ-45 PoE
Power Over Ethernet (PoE): PoE
Power
Device Type: External power adapter
Frequency: 50/60 hertz
Power Consumption Operational: 77.9 watt
PoE Budget: 64 watt
Memory and Processor
Flash Memory Installed: 2 megabyte
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 0 - 90% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 0 - 95% (non-condensing)
MTBF: 786,841 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: Link/activity, Port transmission speed, Power
Dimensions and Weight
Height: 1.1 inch
Width: 6.7 inch
Depth: 3.9 inch
Weight: 15.17 ounce
Certifications and Listing
Compliant Standards: BSMI, cUL, FCC Class A certified, LVD, UL, VCCI Class A ITE
Compliant Standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
