Product Information

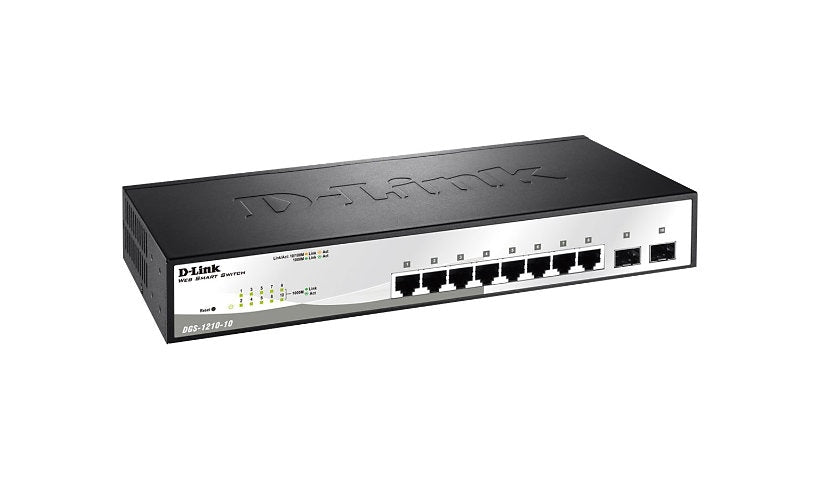

D-Link's DGS-1210-10 is a fanless smart managed switch with eight Gigabit ports and two SFP slots. It offers 20 Gbps of switching capacity with 802.1x, ACLs, bandwidth control and cable diagnostics, and sits on a desk or mounts in a rack.
Key Features
- 8 x 10/100/1000 RJ-45 ports
- 2 x SFP slots
- 20 Gbps switching, 14.88 Mpps
- Smart managed, 802.1x, ACL
- Fanless design
- Desktop or rack mount
Product Information
Brand: D-Link
Manufacturer: D-Link
Product Line: D-Link Smart+
Model: DGS-1210-10
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black, Gray
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, HTTP, RMON 1, SNMP 1, SNMP 2c, SNMP 3, Telnet
Authentication Method: Extensible Authentication Protocol (EAP), RADIUS, Secure Shell v.2 (SSH2)
Encryption: MD5, PEAP, SSL, SSL 2.0, SSL 3.0, TLS, TTLS
Performance: Forwarding performance (64-byte packet size): 14.88 Mpps, Switching capacity: 20 Gbps
Capacity: ACL rules: 768, ARP entries: 64, IGMP groups: 256, QoS hardware queues per port: 8
MAC Address Table Size: 16K entries
Jumbo Frame Support: 9216 bytes
Features: 1.5MB packet buffer, 802.1x authentication, Access Control List (ACL) support, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Bandwidth control, BOOTP support, Broadcast Storm Control, Cable Diagnostics Function, Class of Service (CoS), D-Link Green Technology, DHCP client, DHCP snooping, DiffServ Code Point (DSCP) support, Dynamic ARP Inspection (DAI), Firmware upgradable, Flow control, Full duplex capability, IGMP snooping, IP-MAC binding, IPv6 support, MLD snooping, Multicast filtering function, Multicast Storm Control, Port mirroring, Port Security, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Safeguard Engine, SNMP trap, SNTP support, Spanning Tree Protocol (STP) support, Store and forward, Strict Priority Queuing (SPQ), Syslog support, Trivial File Transfer Protocol (TFTP) support, Type of Service (ToS), Unicast Storm Control, VLAN support, Weighted Round Robin (WRR) queuing
Connectivity
Ports: 8
Port Quantity: 8
Port Type: 10/100/1000
Ports (2nd) Quantity: 2
Ports Type (2nd): SFP (mini-GBIC)
Interface Provided: 2 x SFP, 8 x 1000Base-T RJ-45
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 0 - 95% (non-condensing)
MTBF: 360,844 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Rack-mountable
Height (Rack Units): 1
Status Indicators: Link/activity, Port transmission speed, Power
Dimensions and Weight
Height: 1.7 inch
Width: 5 inch
Depth: 11 inch
Weight: 3.4 lbs
Certifications and Listing
Compliant Standards: BSMI, C-Tick, CCC, cUL, FCC Class A certified, LVD, VCCI Class A
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
