Product Information

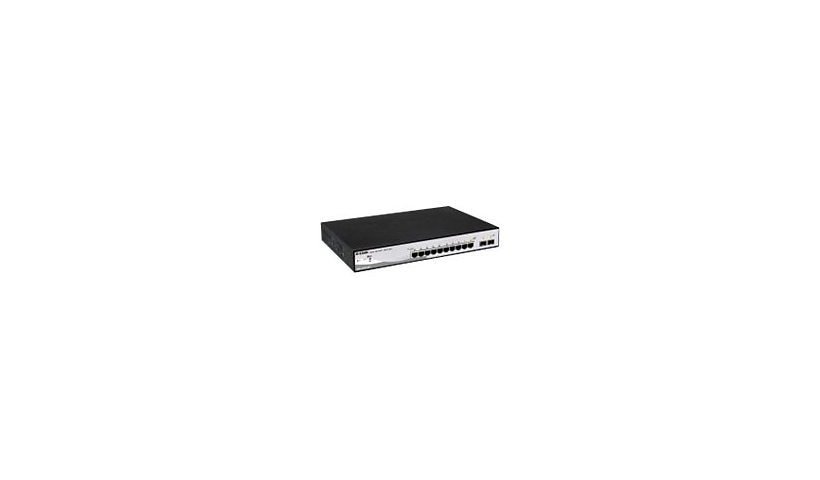

D-Link's DGS-1210-10MP is an L2+ web smart desktop switch with eight Gigabit PoE+ ports and two Gigabit SFP ports. It has a 130 W PoE budget and 20 Gbps of switching capacity, with features such as dual firmware images, DoS protection and bandwidth control.
Key Features
- 8 x 10/100/1000 RJ-45 PoE+ ports
- 2 x Gigabit SFP ports
- 130 W PoE budget
- 20 Gbps switching, 14.88 Mpps
- L2+ web smart, dual firmware images
- Desktop, internal power supply
Product Information
Brand: D-Link
Manufacturer: D-Link
Product Line: D-Link Web Smart
Model: DGS-1210-10MP
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black, Gray
Network and Communication
Advanced Switching: Layer 2+
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, RMON 1, SNMP 1, SNMP 2c, SNMP 3, SSH-2, Telnet, TFTP
Routing Protocol: IGMP, IGMPv2, IGMPv3, MLD, MLDv2, Static IP routing
Authentication Method: Extensible Authentication Protocol (EAP), RADIUS
Encryption: MD5, PEAP, TLS, TLS 1.0, TTLS
Performance: Forwarding performance (64-byte packet size): 14.88 Mpps, Switching capacity: 20 Gbps
MAC Address Table Size: 8K entries
Jumbo Frame Support: 10000 bytes
Features: Authentication, Authorization and Accounting (AAA), Bandwidth control, BOOTP support, Broadcast Storm Control, DHCP client, DiffServ Code Point (DSCP) support, DoS attack prevention, Dual firmware images, Firmware upgradable, Flow control, Head-of-line (HOL) blocking, Link Aggregation Control Protocol (LACP), LLDP support, Loopback, MDI/MDI-X switch, Multicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, Neighbor Discovery Protocol (NDP), Port mirroring, Port Security, Rapid Spanning Tree Protocol (RSTP) support, Spanning Tree Protocol (STP) support, Store and forward, Type of Service (ToS), Unicast Storm Control, Weighted Round Robin (WRR)
Smart: Yes
Connectivity
Ports: 8
Port Quantity: 8
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 2
Ports Type (2nd): Gigabit SFP
Interface Provided: 2 x 1000Base-X SFP, 8 x 1000Base-T RJ-45 PoE
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
PoE Budget: 130 watt
Memory and Processor
RAM Installed: 128 megabyte
Flash Memory Installed: 32 megabyte
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 95%
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 0 - 95%
MTBF: 1,274,005 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: Link/activity/speed, Power
Dimensions and Weight
Height: 1.7 inch
Width: 13 inch
Depth: 7.1 inch
Weight: 3.9 lbs
Certifications and Listing
Compliant Standards: BSMI, CB, CCC, FCC Class A certified, UL, VCCI Class A
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Not sure this fits your network? Send us your current switch, router or chassis model and the DatorPro team will confirm compatibility before you order.
