Product Information

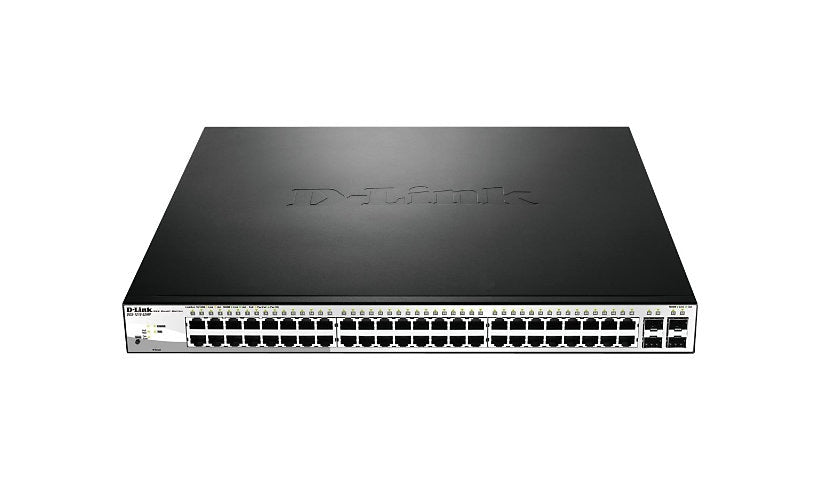

D-Link's DGS-1210-52MP is a web smart switch with eight Gigabit PoE+ ports at 30 W, 40 Gigabit PoE ports at 15.4 W and four SFP ports. It has a 370 W PoE budget, 104 Gbps of switching capacity and a smart fan that only spins up when the switch gets warm.
Key Features
- 8 x 10/100/1000 RJ-45 PoE+ ports, 30 W
- 40 x 10/100/1000 RJ-45 PoE ports, 15.4 W
- 4 x SFP ports
- 370 W PoE budget
- 104 Gbps switching, 77.4 Mpps
- Smart fan, desktop or rack mount
Product Information
Brand: D-Link
Manufacturer: D-Link
Product Line: D-Link Web Smart
Model: DGS-1210-52MP
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black, Gray
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, HTTP, RMON 1, SNMP 1, SNMP 2c, SNMP 3, Telnet
Authentication Method: Extensible Authentication Protocol (EAP), Internal user database, RADIUS, Secure Shell v.2 (SSH2)
Encryption: MD5, PEAP, SSL, SSL 2.0, SSL 3.0, TLS, TTLS
Performance: Forwarding performance (64-byte packet size): 77.4 Mpps, Switching capacity: 104 Gbps
Capacity: ACL rules: 768, ARP entries: 64, IGMP groups: 256, QoS hardware queues per port: 8
MAC Address Table Size: 16K entries
Jumbo Frame Support: 9216 bytes
Features: 3MB packet buffer, 802.1x authentication, Access Control List (ACL) support, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Bandwidth control, BOOTP support, Broadcast Storm Control, Cable Diagnostics Function, Class of Service (CoS), D-Link Green Technology, DHCP client, DHCP snooping, DiffServ Code Point (DSCP) support, Dynamic ARP Inspection (DAI), Firmware upgradable, Flow control, Full duplex capability, IGMP snooping, IP-MAC binding, IPv6 support, MLD snooping, Multicast filtering function, Multicast Storm Control, Port mirroring, Port Security, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Safeguard Engine, Security lock slot (cable lock sold separately), SNMP trap, SNTP support, Spanning Tree Protocol (STP) support, Store and forward, Strict Priority Queuing (SPQ), Syslog support, TFTP client, Type of Service (ToS), Unicast Storm Control, VLAN support, Weighted Round Robin (WRR) queuing
Connectivity
Ports: 52
Port Quantity: 8
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 40
Ports Type (2nd): 10/100/1000 (PoE)
Ports (3rd) Quantity: 4
Interface Provided: 4 x SFP, 40 x 1000Base-T RJ-45 PoE - 15.4 W, 8 x 1000Base-T RJ-45 PoE+ - 30 W
Power Over Ethernet (PoE): PoE+
QSFP Slots: SFP (mini-GBIC)
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
PoE Budget: 370 watt
Memory and Processor
RAM Installed: 128 megabyte
Memory Technology: DDR3 SDRAM
Flash Memory Installed: 16 megabyte
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 0 - 95% (non-condensing)
MTBF: 318,616 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Rack-mountable
Height (Rack Units): 1
Status Indicators: Fan, Link/activity, PoE, Port transmission speed, Power
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 16.9 inch
Weight: 12.74 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Compliant Standards: BSMI, C-Tick, cUL, FCC Class A certified, ICES-003, LVD, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
