Product Information

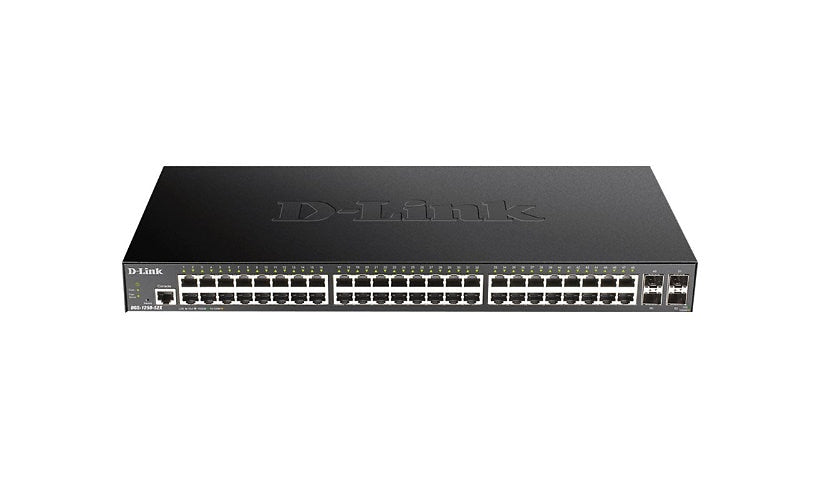

D-Link's DGS-1250-52X-6KV is a smart managed rack switch with 48 Gigabit ports and four 10G SFP+ ports. It offers 176 Gbps of switching capacity, 6 kV surge protection, a full CLI console and features such as 802.1x, ACLs and ARP inspection.
Key Features
- 48 x 10/100/1000 RJ-45 ports
- 4 x 10G SFP+ ports
- 176 Gbps switching, 130.95 Mpps
- 6 kV surge protection
- 802.1x, ACL, ARP inspection
- Rack mount
Product Information
Brand: D-Link
Manufacturer: D-Link
Product Line: D-Link DGS
Model: 1250-52X-6KV
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, ICMP, RADIUS, RMON, RMON 2, RSTP, SNMP 1, SNMP 2c, SNMP 3, SSH-2, Telnet, TFTP
Routing Protocol: IGMP, IGMPv2, IGMPv3, MLD, MLDv2, MSTP, RSTP, Static IP routing, STP
Authentication Method: Extensible Authentication Protocol (EAP), RADIUS, Secure Shell v.2 (SSH2)
Encryption: MD5, PEAP, TLS 1.2, TTLS
Performance: Forwarding rate (64-byte packets): 130.95 Mpps, Switching capacity: 176 Gbps
Capacity: IGMP groups: 256, MAC address entries: 256, Packet buffer size: 16 MB, VLAN groups: 4094
MAC Address Table Size: 32K entries
Jumbo Frame Support: 12000 bytes
Features: 6KV Surge protection, 802.1x authentication, Access Control List (ACL) support, ARP inspection, ARP spoofing, Auto-uplink (auto MDI/MDI-X), BOOTP support, Broadcast Storm Control, Cable Diagnostics Function, D-Link Discovery Protocol (DDP), DHCP client, DHCP server, DiffServ Code Point (DSCP) support, DoS attack prevention, Dual image support, Energy-Efficient Ethernet (EEE), Firmware upgradable, Flow control, Full duplex mode, Green Technology, Half duplex mode, Head-of-line (HOL) Blocking Prevention, IGMP snooping, LACP support, LLDP support, LLDP-MED, Loopback detection, Management Information Base (MIB) II, MLD snooping, Multicast filtering function, Multicast Storm Control, Neighbor Discovery Protocol (NDP), One-Time Password (OTP), Port mirroring, Port Security, Quality of Service (QoS), Reset button, Safeguard Engine, SNMP trap, SNTP support, Store and forward, Syslog support, Type of Service (ToS), Unicast Storm Control, Voice VLAN, VoIP support, Weighted Round Robin (WRR)
Smart: Yes
Connectivity
Ports: 52
Port Quantity: 48
Port Type: 10/100/1000
Ports (2nd) Quantity: 4
Ports Type (2nd): 10 Gigabit SFP+
Interface Provided: 4 x 10GBase-X SFP+, 48 x 1000Base-T RJ-45
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 51.2 watt
Memory and Processor
RAM Installed: 2 GB
Memory Technology: DDR3 SDRAM
Flash Memory Installed: 64 megabyte
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 95%
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 0 - 95%
MTBF: 589,984.72 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Status Indicators: Link/activity/speed, Power
Dimensions and Weight
Height: 1.7 inch
Width: 8.3 inch
Depth: 17.3 inch
Weight: 6.64 lbs
Certifications and Listing
Compliant Standards: BSMI, CB, CCC, FCC Class A certified, IC, UL, VCCI Class A
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - advance hardware replacement - lifetime - response time: next business day
Service Activation: No
