Product Information

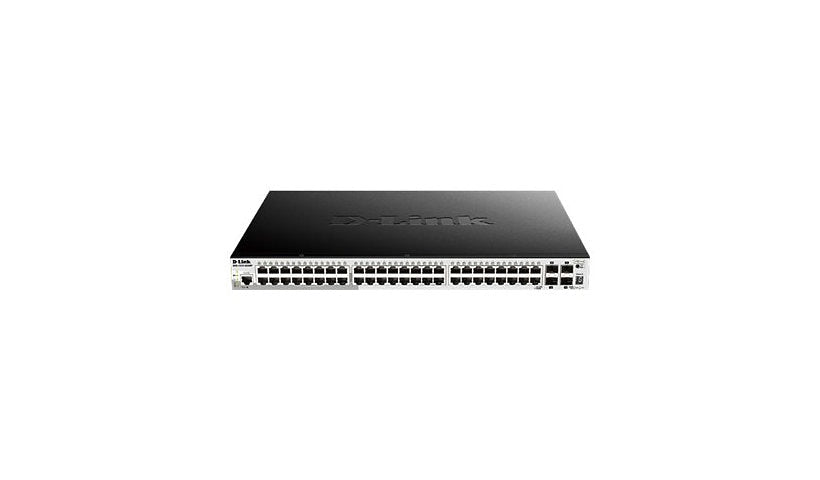

D-Link's DGS-1510-52XMP is a stackable smart managed switch with 48 Gigabit PoE+ ports at up to 30 W and four 10G SFP+ ports. It has a 370 W PoE budget and 176 Gbps of switching capacity, stacks up to six units and adds Layer 3 features.
Key Features
- 48 x 10/100/1000 RJ-45 PoE+ ports, 30 W
- 4 x 10G SFP+ ports
- 370 W PoE budget
- 176 Gbps switching, 130.95 Mpps
- Stack up to 6 units
- Layer 3 features, 3 MB buffer
Product Information
Brand: D-Link
Manufacturer: D-Link
Product Line: D-Link DGS
Model: 1510-52XMP
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black, Gray
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, RMON 1, SNMP 1, SNMP 2c, SNMP 3, SSH-2, Telnet
Routing Protocol: IGMP, IGMPv2, IGMPv3, MLD, MLDv2, Static IP routing
Authentication Method: Extensible Authentication Protocol (EAP), RADIUS, Secure Shell v.2 (SSH2), TACACS+
Encryption: PEAP, SSL, SSL 2.0, SSL 3.0, TLS, TTLS
Performance: Forwarding performance: 130.95 Mpps, Switching capacity: 176 Gbps
Capacity: Static ARP entries: 256, VLAN groups: 4094
MAC Address Table Size: 16K entries
Jumbo Frame Support: 9216 bytes
Stackable: Stackable
Features: 3MB packet buffer, 4 fans, Access Control List (ACL) support, ARP support, Authentication, Authorization and Accounting (AAA), Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Bridge protocol data unit (BPDU), Broadcast Storm Control, Cable test, Deficit Round Robin (DRR), DHCP client, DHCP relay, DHCP snooping, DoS attack prevention, Dual firmware images, Dynamic ARP Inspection (DAI), Dynamic VLAN Support (GVRP), Ethernet Ring Protection Switching (ERPS), Flow control, Full duplex mode, Half duplex mode, Head-of-line (HOL) Blocking Prevention, IGMP snooping, Internet Control Message Protocol (ICMP), IP source guard, Link Aggregation Control Protocol (LACP), LLDP support, LLDP-MED, Loopback detection, MLD snooping, Multicast filtering function, Multicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, Network Timing Protocol (NTP), Port mirroring, Port Security, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Reset button, sFlow, SNMP trap, Spanning Tree Protocol (STP) support, Store and forward, Strict Priority Queuing (SPQ), System log, TFTP client, Unicast Storm Control, Web-based Access Control (WAC), Weighted Round Robin (WRR)
Smart: Yes
Max Units In A Stack: 6
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): 10 Gigabit SFP+
Interface Provided: 1 x console RJ-45 management, 4 x 10GBase-X SFP+, 48 x 1000Base-T RJ-45 PoE+ - 30 W
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 486.9 watt
PoE Budget: 370 watt
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 0 - 95% (non-condensing)
MTBF: 303,027 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Status Indicators: Error, Fan, Link/activity/speed, Power, Stack
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 12.1 inch
Weight: 11.93 lbs
Certifications and Listing
Compliant Standards: BSMI, C-Tick, CB, cUL, FCC, VCCI
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
